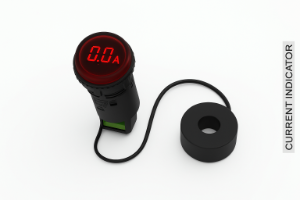

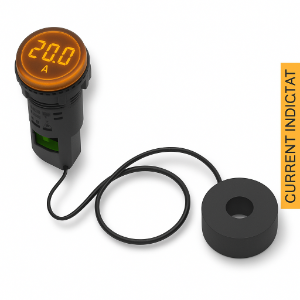

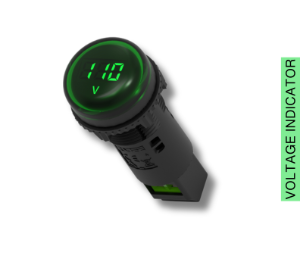

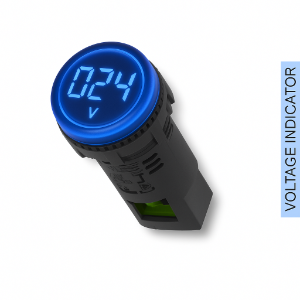

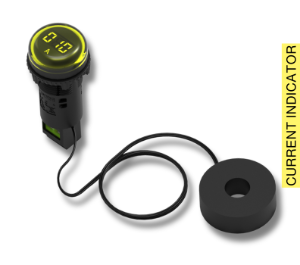

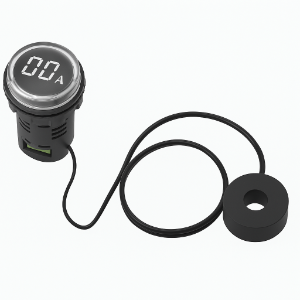

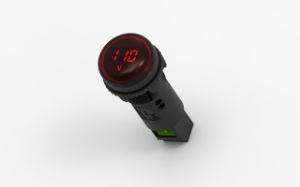

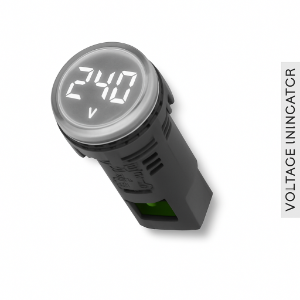

Esbee 22.5 mm LED Indicators with Integrated Meter Display combine the clarity of LED visual indication with the functionality of a built-in digital meter — offering a compact, multifunction display solution for control and monitoring panels. Designed to fit a standard 22.5 mm mounting hole, these innovative indicators allow engineers to monitor voltage, current, frequency, or temperature directly from the indicator face without requiring separate instrumentation. Compact, accurate, and easy to install, they represent a new generation of smart indication technology from Esbee.
🔧 Technical Highlights:
- Mounting size: Standard Ø 22.5 mm panel cut-out (EN 60947 compliant)
- Display type: 3-digit or 4-digit LED digital display integrated with illuminated bezel

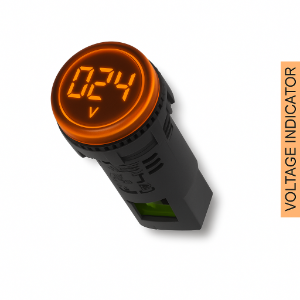

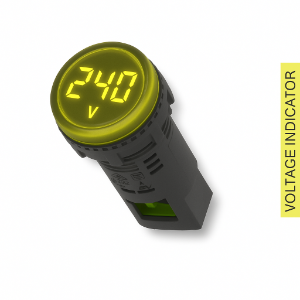

- Measured parameters: AC/DC voltage, current, frequency, or temperature (model dependent)

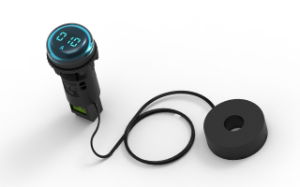

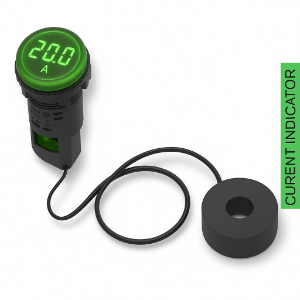

- Input range: Voltage 0–500 V, current 0–100 A (with CT), temperature 0–120 °C (with probe)
- Indication colours: Red, green, blue, or tri-colour display options
- Power supply: Self-powered or auxiliary supply 12–30 V DC / 85–265 V AC (model dependent)
- Accuracy: Typically ±0.5 % of reading
- Ingress protection: IP65 front sealing with supplied gasket
- Certifications: CE, UKCA and RoHS compliant
✅ Benefits:
- Combines LED indication and digital readout in a single 22.5 mm module
- Ideal for voltage, current or process signal monitoring in compact panels
- Simplifies wiring and reduces panel space by eliminating separate meters
- Bright, clear LED display ensures visibility in any lighting condition
- Backed by Esbee quality and Charter Controls’ UK support and stock availability
🚀 Applications:
- Control and automation panels
- Machine and process monitoring systems
- Power distribution and voltage monitoring
- Temperature or signal display in OEM equipment
- Compact installations requiring integrated indication and metering
Esbee’s new 22.5 mm LED indicators with integrated meter display combine status indication and measurement in one device — delivering innovation, clarity and efficiency for modern control and automation systems, available from Charter Controls with verified UK stock.
FAQs
- Q: What parameters can the integrated meter display measure?
A: Depending on the model, the display can measure AC/DC voltage, current, frequency or temperature directly through its input terminals or sensor connection. - Q: Can the display colour be customised?
A: Yes — models are available with fixed or tri-colour LED displays for status-based or parameter-dependent colour indication.
