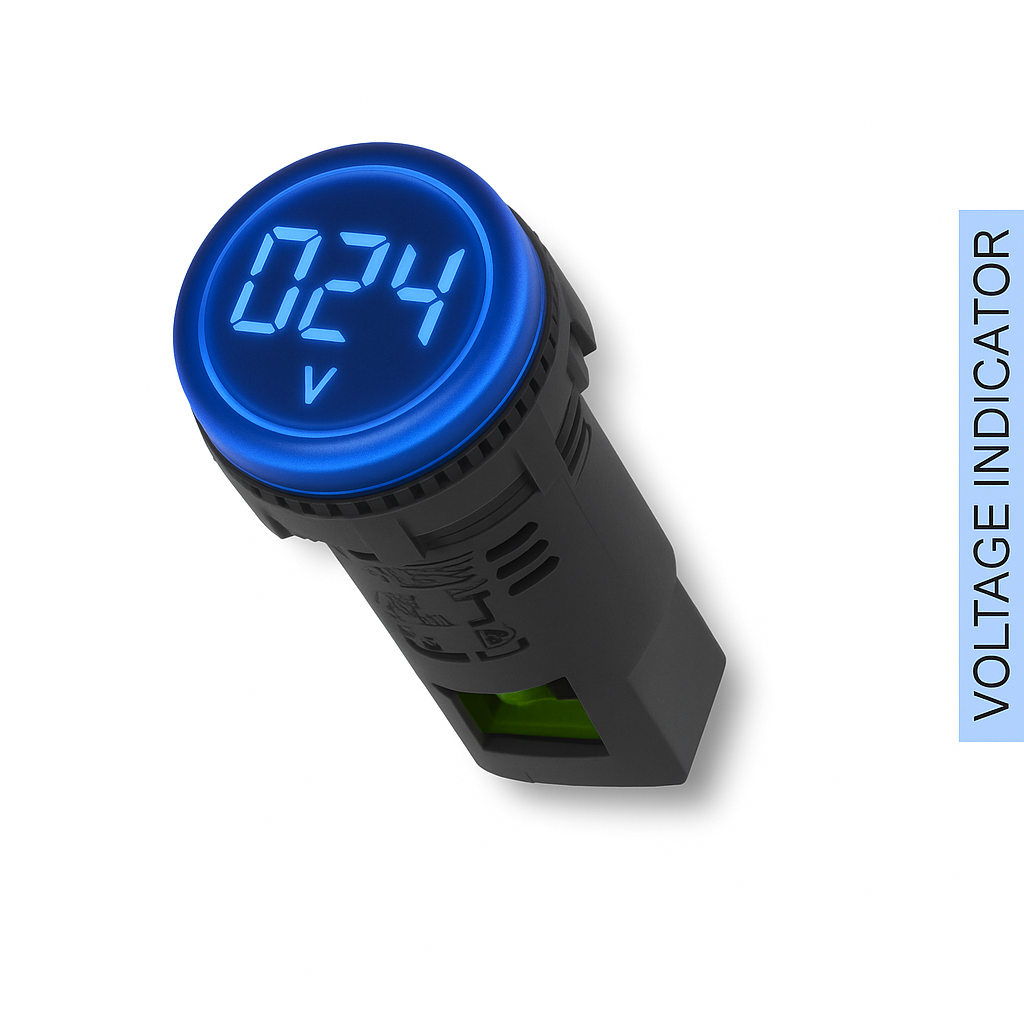

EVAB124A01 is a Ø22.5 mm panel-mounted blue digital indicator from the EVA range, designed to display voltage in real-time. Operating at 70-240 V AC, it features a built-in digital voltage display and provides fast, visual feedback for monitoring applications in compact control panels.
🔧 Technical Highlights:
- Indicator type: Voltage
- Display: digital voltage display
- LED colour: Blue
- Supply voltage: 70-240 V AC (±20%)
- Cutout size: Ø22.5 mm
- Mounting: Panel mount with nut fastening
- Ingress protection: IP65 (above panel), IP20 (terminals)
- Operating temperature: -25°C to +65°C
- Certifications: CE, UL
✅ Benefits:
- Displays live voltage value for instant diagnostics
- Space-saving integrated indicator and meter
- Quick visual reference without additional meters
- Compact design suitable for dense panel layouts
🚀 Applications:
- Power and control panels
- Equipment condition monitoring
- Automation diagnostics
- Industrial temperature, voltage, current or frequency monitoring
Why choose this model? EVAB124A01 combines critical measurement and clear indication in one unit, saving space and improving visibility in any industrial setting.
