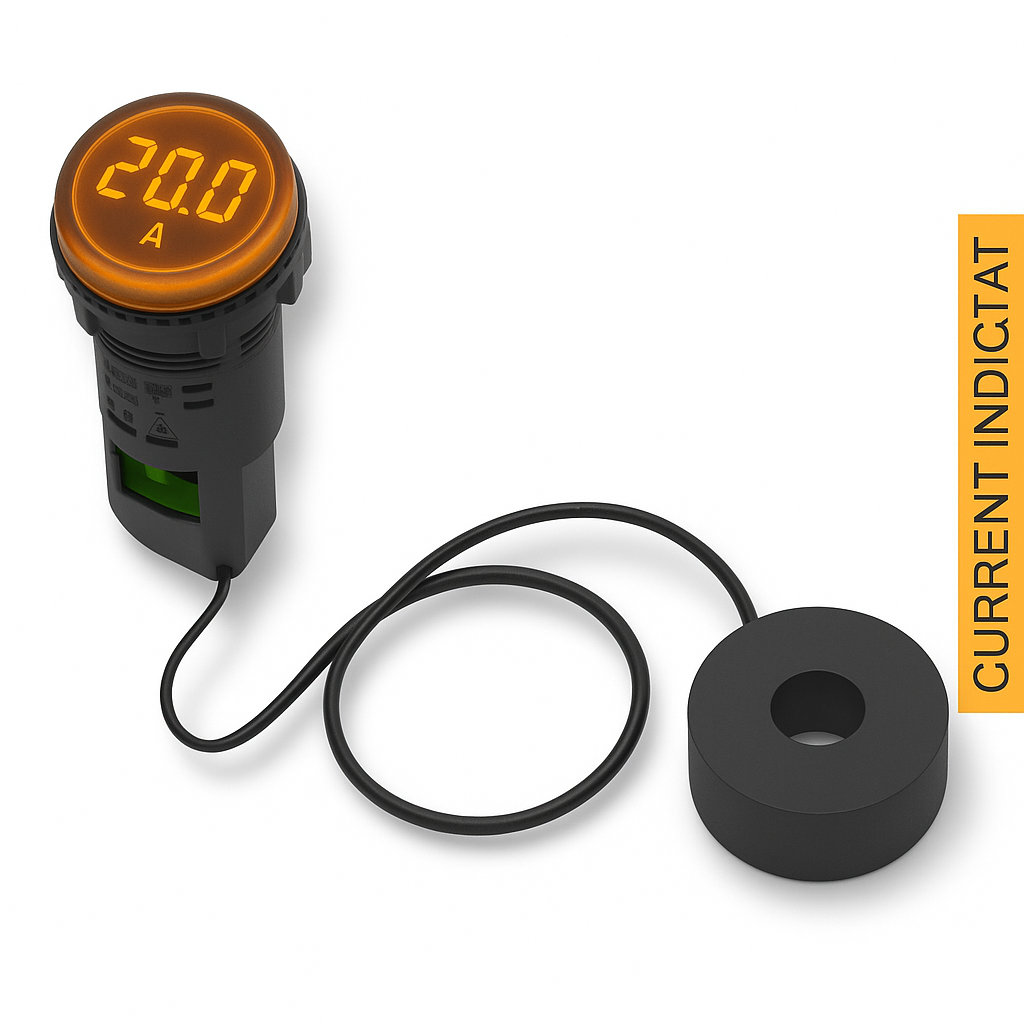

Current Indicator Amber 24 V DC is a panel-mount current indicator designed for monitoring key electrical parameters on control panels and machinery. It fits a standard 22.5 mm panel cutout and provides a clear 3-digit 7-segment display with IP65 front protection.
🔧 Technical Highlights:
- Panel cutout: 22.5 mm
- Display: 7-segment, 3 digit
- Current range: 0 A to 100 A (with CT, single phase) or 0 A to 12 A
- Tolerance: ±1 A
- Frequency: 50/60 Hz
- Supply variant: 24 V DC
- Housing: Black
- Illuminating lens colour: Amber
- Protection: IP65 (front) / IP20 (terminals)
- Terminals: 2-pin screw terminal (0.75 to 1 mm2 wire)
- Screw tightening torque: 0.8 Nm
- Operating temperature: -20°C to 60°C
- Compliance: RoHS, CE
✅ Benefits:
- Fast at-a-glance readings for troubleshooting and routine checks
- Simple panel mounting in a 22.5 mm hole
- IP65 front protection for harsh industrial environments
- Low power consumption for continuous monitoring
- Improves process stability and reduces downtime
🚀 Applications:
- Control panels and switchboards
- UPS systems and backup power
- EV charging stations and power distribution
- Industrial ovens, cold storage, and refrigeration
- Motors, pumps, compressors, and generators
Built for clear readouts, straightforward installation, and reliable panel performance.
FAQs
- Q: What panel cutout is required for installation?
A: These indicators are designed for standard 22.5 mm panel cutouts.
- Q: Do I need a current transformer (CT)?
A: For higher currents, the unit works with a CT (single-phase). It can also measure lower currents directly up to 12 A.
