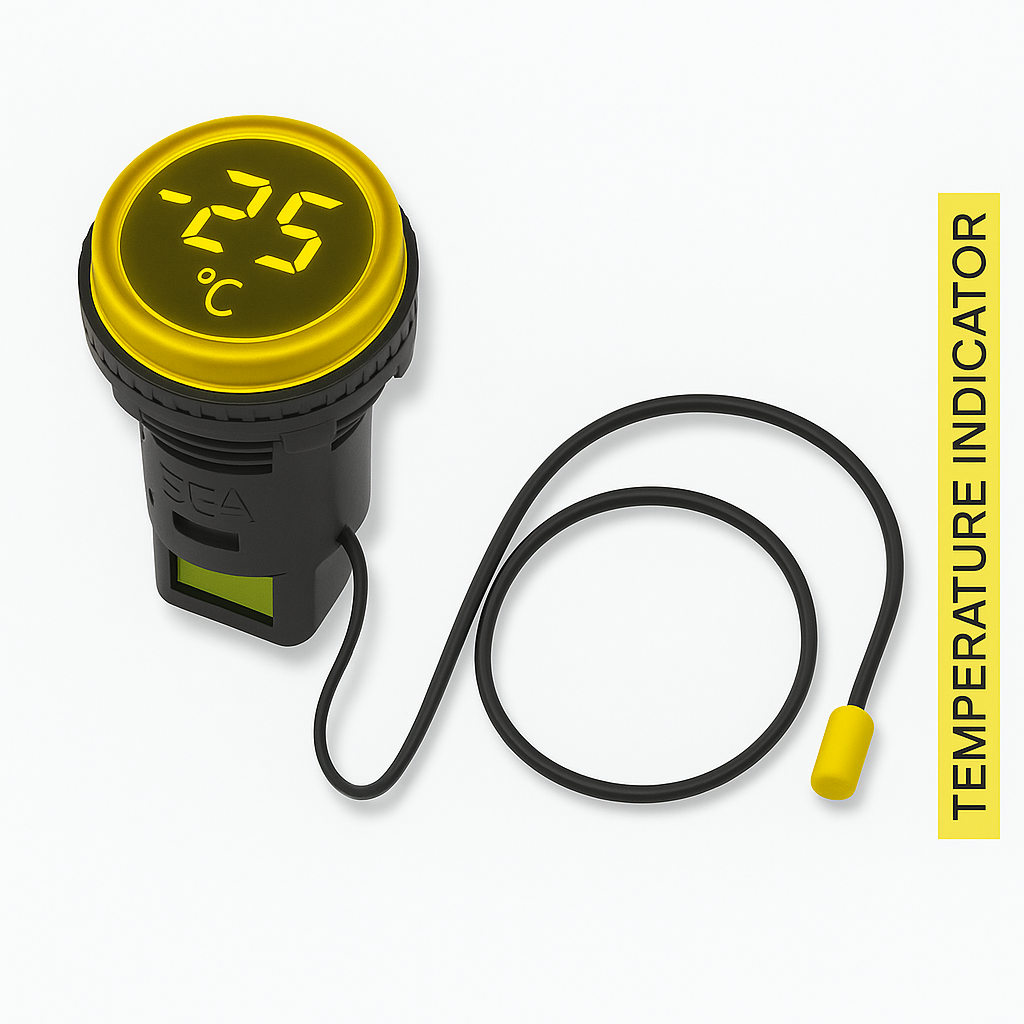

Temperature Indicator Yellow 24 V DC is a panel-mount temperature indicator designed for monitoring key electrical parameters on control panels and machinery. It fits a standard 22.5 mm panel cutout and provides a clear 3-digit 7-segment display with IP65 front protection.
🔧 Technical Highlights:
- Panel cutout: 22.5 mm
- Display: 7-segment, 3 digit
- Temperature range: -50°C to 80°C
- Tolerance: ±1°C
- Sensor: NTC / molded (1 m standard lead)
- Frequency: 50/60 Hz
- Supply variant: 24 V DC
- Housing: Black
- Illuminating lens colour: Yellow
- Protection: IP65 (front) / IP20 (terminals)
- Terminals: 2-pin screw terminal (0.75 to 1 mm2 wire)
- Screw tightening torque: 0.8 Nm
- Operating temperature: -20°C to 60°C
- Compliance: RoHS, CE
✅ Benefits:
- Fast at-a-glance readings for troubleshooting and routine checks
- Simple panel mounting in a 22.5 mm hole
- IP65 front protection for harsh industrial environments
- Low power consumption for continuous monitoring
- Improves process stability and reduces downtime
🚀 Applications:
- Control panels and switchboards
- UPS systems and backup power
- EV charging stations and power distribution
- Industrial ovens, cold storage, and refrigeration
- Motors, pumps, compressors, and generators
Built for clear readouts, straightforward installation, and reliable panel performance.
FAQs
- Q: What panel cutout is required for installation?
A: These indicators are designed for standard 22.5 mm panel cutouts.
- Q: Is a temperature sensor included?
A: Temperature models support NTC/molded sensors with a 1 m standard lead. Confirm the supplied sensor with your order.
