High-current timer, 1 C/O, 12-240V AC/DC, 10 modes, 16A output, DIN rail mount

Stock Code: 1CQDT9

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

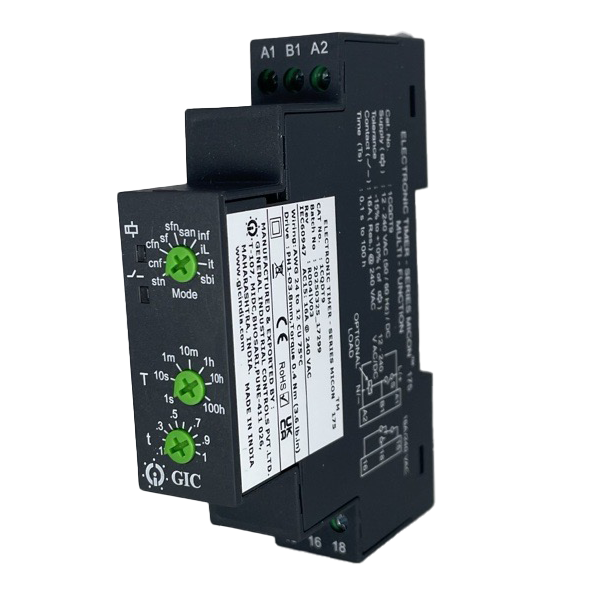

The GIC 1CQDT9 is a 10-function multifunction timer with high current switching up to 16A. It supports wide input voltage and provides reliable control over complex timing needs.

🔧 Technical Highlights:

  • Supply Voltage: 12-240V AC/DC

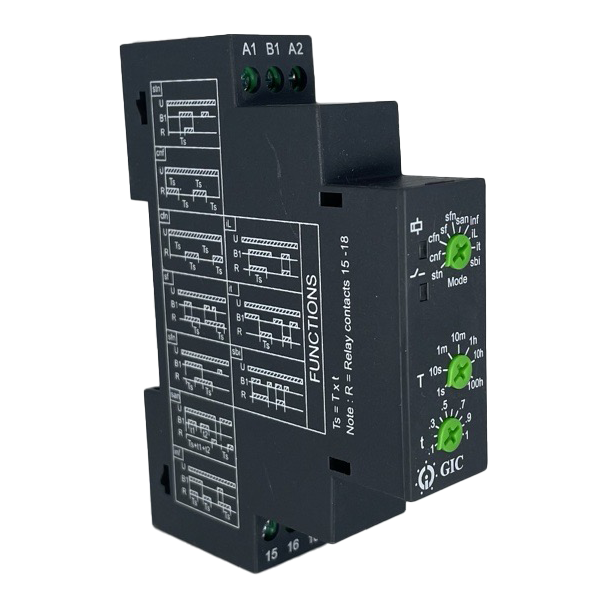

  • Functions: 10 modes including ON/OFF Delay, Impulse, Cyclic, Interval, Retriggerable
  • Timing Range: 0.1 s to 100 h
  • Relay Output: 1 C/O, 16A @ 250 VAC / 24 VDC
  • Reset Time: 200 ms
  • Mounting: DIN rail
  • Indication: LED status

✅ Benefits:

  • Supports heavy-duty loads up to 16A
  • Flexible timing functions with wide input range
  • Reliable switching in demanding automation circuits

🚀 Applications:

  • Heavy load switching in process systems
  • Lighting or heating time control circuits
  • Machine automation panels

The 1CQDT9 combines versatile timing with robust 16A output for industrial environments.

Supply Voltage12-230Vac/dc
Output Relay / ChannelsSPCO
Output Relay Rating16A @ 230V
Timing Range0.1s - 100 Hrs
MountingDIN Rail
Size17.5mm
ProtectionIP20, IP40
Weight0.08
Type File Name
Data Sheet 1CQDT9.pdf
Technical Drawings 1M MULTIFUNCTION TIMER (16A).stp.zip
