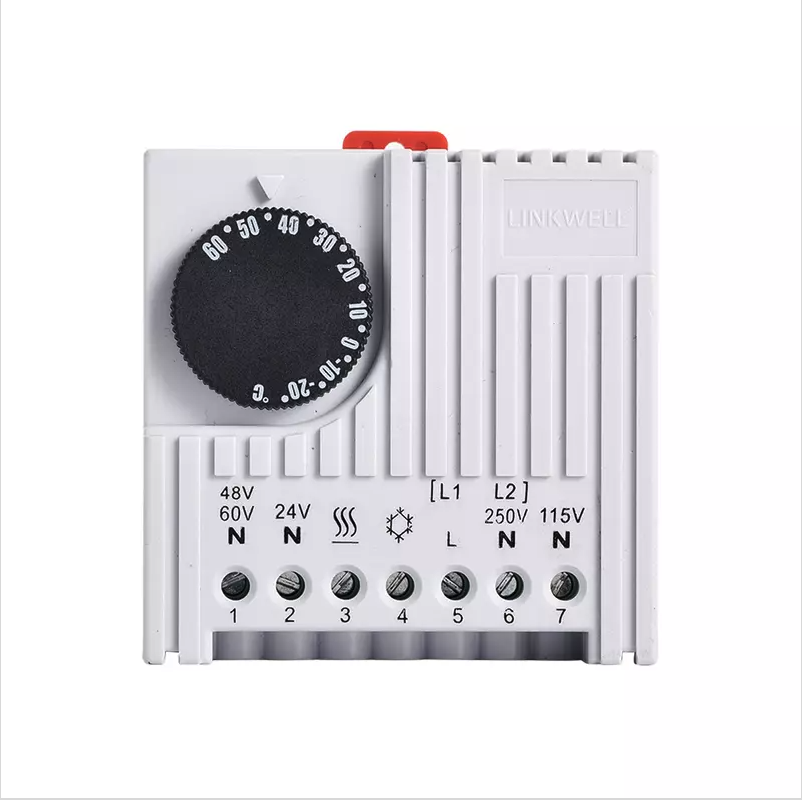

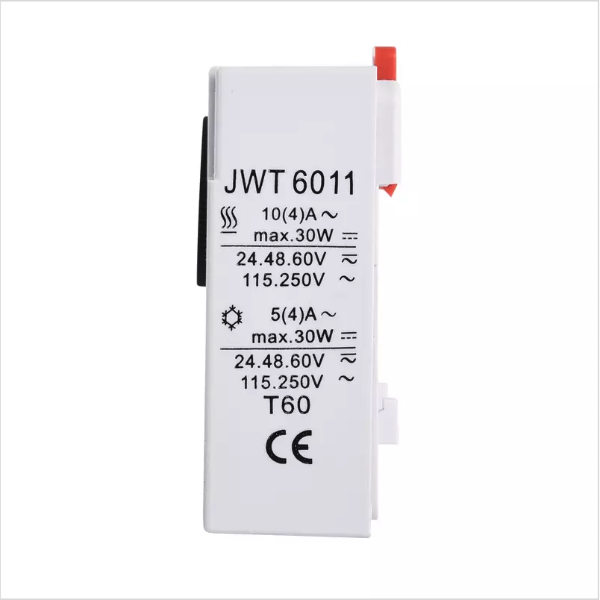

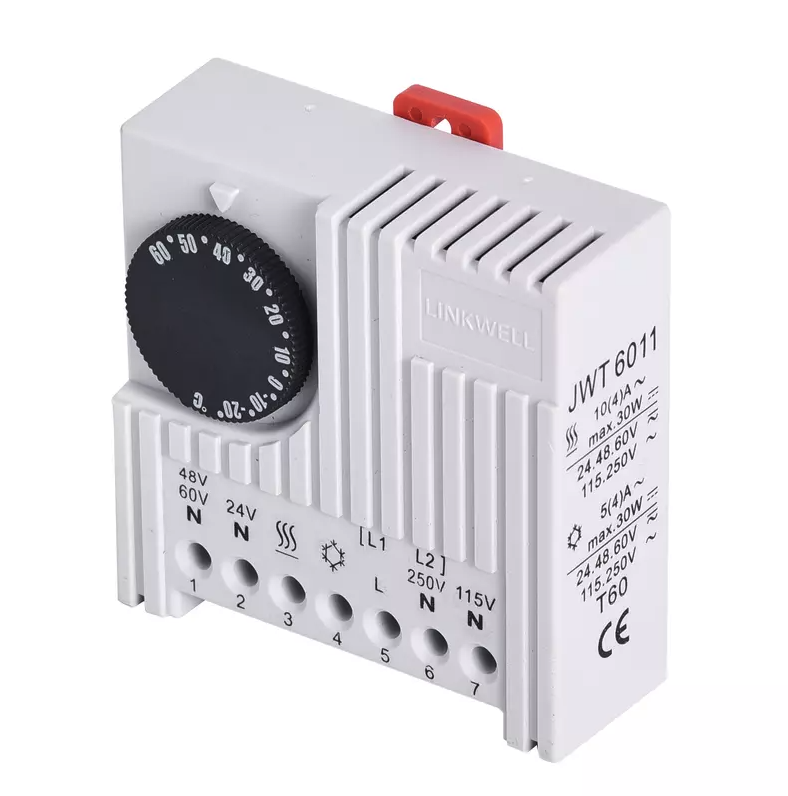

JWT6011 is an enclosure thermostat with a single-pole changeover (SPDT) contact, allowing the same device to control heating and cooling or provide a temperature alarm over a 0–60°C range.
🔧 Technical Highlights:
- Function: SPDT thermostat for heating and cooling control
- Contact type: Changeover (SPDT) bimetal contact
- Setting range: Typically 0–60°C adjustable
- Mounting: DIN-rail mounting inside the enclosure
- Rated voltage: 24–230 V AC (and low-voltage DC options, model dependent)
- Protection: IP20 plastic housing, UL94 V-0
✅ Benefits:
- Improves reliability of control and automation equipment by maintaining a controlled internal environment
- Simple mechanical operation with clear adjustment for quick setup
- Compact design saves space on the DIN rail or panel
- Compatible with Linkwell heaters, fans and other thermal management products
🚀 Applications:
- Control panels and distribution boards
- Drive and VFD cabinets
- Switchgear and MCCs
- Automation, process and building services panels
This enclosure thermostat from Linkwell provides dependable switching for enclosure thermal management, helping to protect critical components and extend service life.
FAQs
- Q: Where is JWT6011 typically used?
A: JWT6011 is used inside electrical enclosures to control heaters and filter fans, maintaining a stable internal temperature for sensitive equipment.
- Q: What is the advantage of the SPDT contact on JWT6011?
A: The SPDT changeover contact lets you control heating and cooling from a single thermostat, or use one contact for control and the other for monitoring.
