15W DIN rail panel heater, 120-250V AC/DC, compact design with LED indicator.

Stock Code: LK140-15W

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

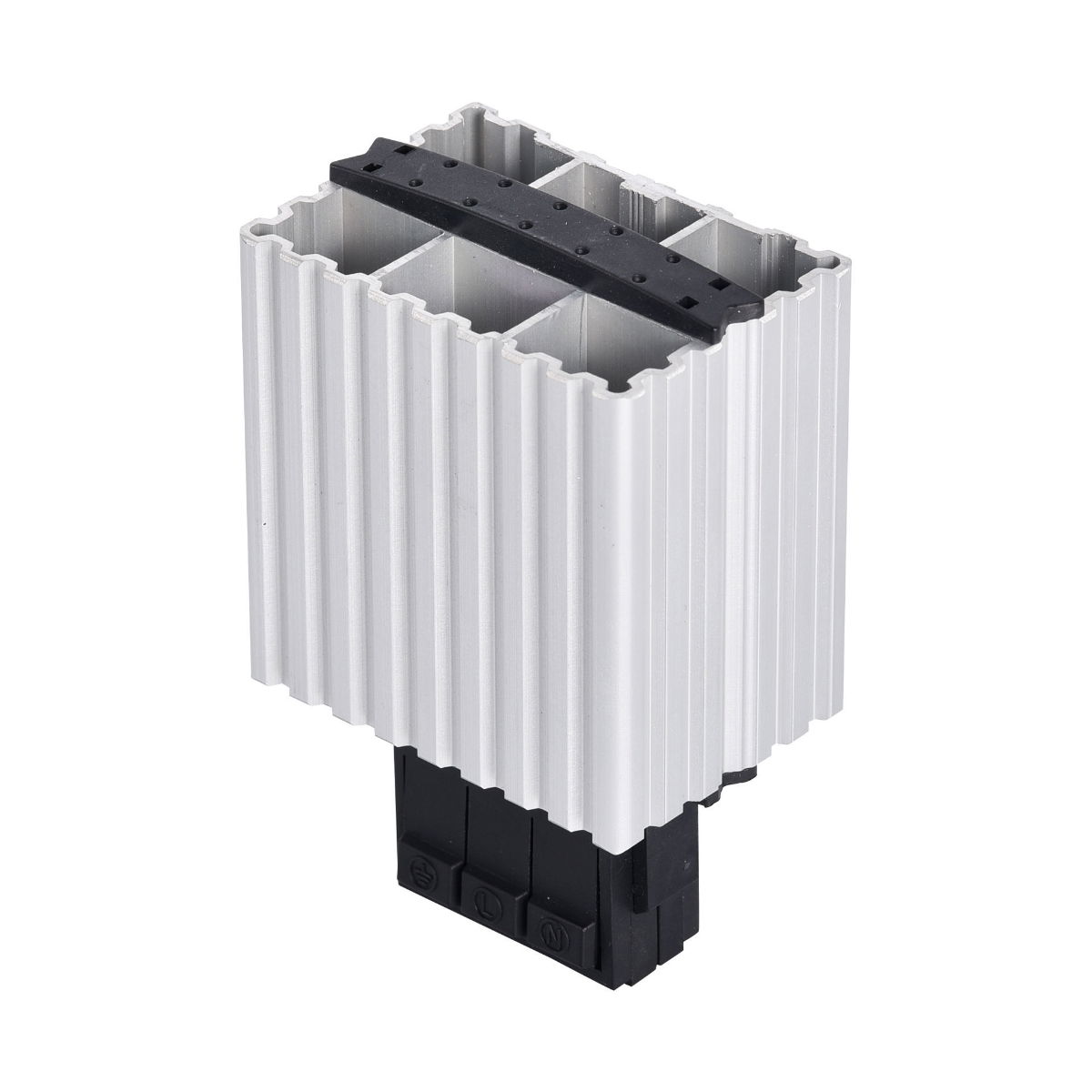

Linkwell LK140‑15W Panel Heater

The LK140‑15W is a compact 15 W DIN‑rail mounted panel heater from Linkwell, designed to prevent condensation and maintain minimum operating temperatures in small enclosures.

Key Features:

  • Wide Voltage Range: Operates on 120–250 V AC/DC for flexible installation options.
  • Self‑Regulating PTC Element: Provides reliable temperature stability and avoids overheating.
  • Durable Casing: Anodised extruded aluminium body with chimney-effect thermal design and IP20 ingress protection.
  • Robust Connections: Screw‑terminal connectors support 0.5–2.5 mm² wires with ferrules, using UL94 V‑0 flame-retardant plastic.
  • 35 mm DIN‑Rail Clip: Snap-fit mounting on standard DIN rail per EN 50022.
  • LED Indicator: Shows ON/OFF status at a glance for operational confidence.
  • Operating Range: –45 °C to +70 °C (–49 °F to +158 °F) for wide environmental compatibility.
  • Compact Size & Low Power: Minimal footprint with 15 W output makes it ideal for small cabinets and sensitive electronics.

Technical Specifications:

Specification Detail
Power Output 15 W
Voltage 120–250 V AC/DC
Material Anodised aluminium & UL94 V‑0 plastic
Mounting 35 mm DIN‑rail (EN 50022), vertical only
Protection IP20 / Class I (earthed)
Temp. Range ‑45 °C to +70 °C (‑49 °F to +158 °F)
Dimensions 65 × 65 × ? mm (length varies by power)
Weight ≈0.2 kg
Certifications CE, RoHS, CQC

Applications & Benefits:

Designed for small enclosures, switch boxes, and compact control panels, the LK140‑15W delivers low-level heating to protect against condensation and temperature drops. Suitable for automation panels, telecom cabinets, and sensitive instrumentation.

Why Choose Charter Controls?

  • As the official UK importer for Linkwell, we guarantee genuine parts and full product support.
  • Next‑working‑day delivery if you order before 3 pm—minimising downtime and installation delays.
  • Technical support and bespoke advice from our experienced team.

Supply Voltage120-250Vac/dc
MountingDIN Rail
Size70x109mm
Rating15w
Weight0.2
Type File Name
Data Sheet LK140.pdf
Technical Drawings LK.HG140-15-75W.stp.zip
