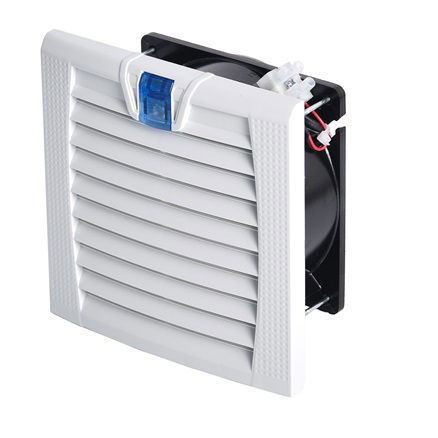

LK3238.024 24Vdc Filter Fan | 65-85m3/h | IP54 Panel Mount
The LK3238.024 is a 24Vdc panel mount filter fan designed to draw filtered air into control enclosures that require higher airflow. With an airflow range of 65-85m3/h, it supports effective thermal management while helping to reduce dust ingress. The fan is supplied with IP54 protection as standard and can be upgraded to IP55 by fitting an optional higher-grade filter mat.
Technical Highlights
- Air direction: Intake (draws filtered air into the enclosure)
- Air flow range: 65-85m3/h
- Supply voltage: 24Vdc
- Size: 148x148mm
- Cutout size: 125x125mm
- Protection: IP54 as supplied, IP55 with optional filter mat
- Mounting: Panel Mount
- Filter media: Replaceable filter mat
Benefits
- Higher airflow for increased heat dissipation
- Filtered intake ventilation reduces dust ingress
- Upgradeable to IP55 protection where higher ingress resistance is required
- Suitable for DC-powered control systems and machinery
Applications
- Medium-sized control panels
- Automation and machine control enclosures
- Electrical cabinets requiring higher airflow rates
Airflow sizing: Not sure which fan is suitable for your enclosure? Use the Charter Controls airflow calculator to estimate the required airflow.
24Vdc intake filter fan providing high airflow for control enclosures.
