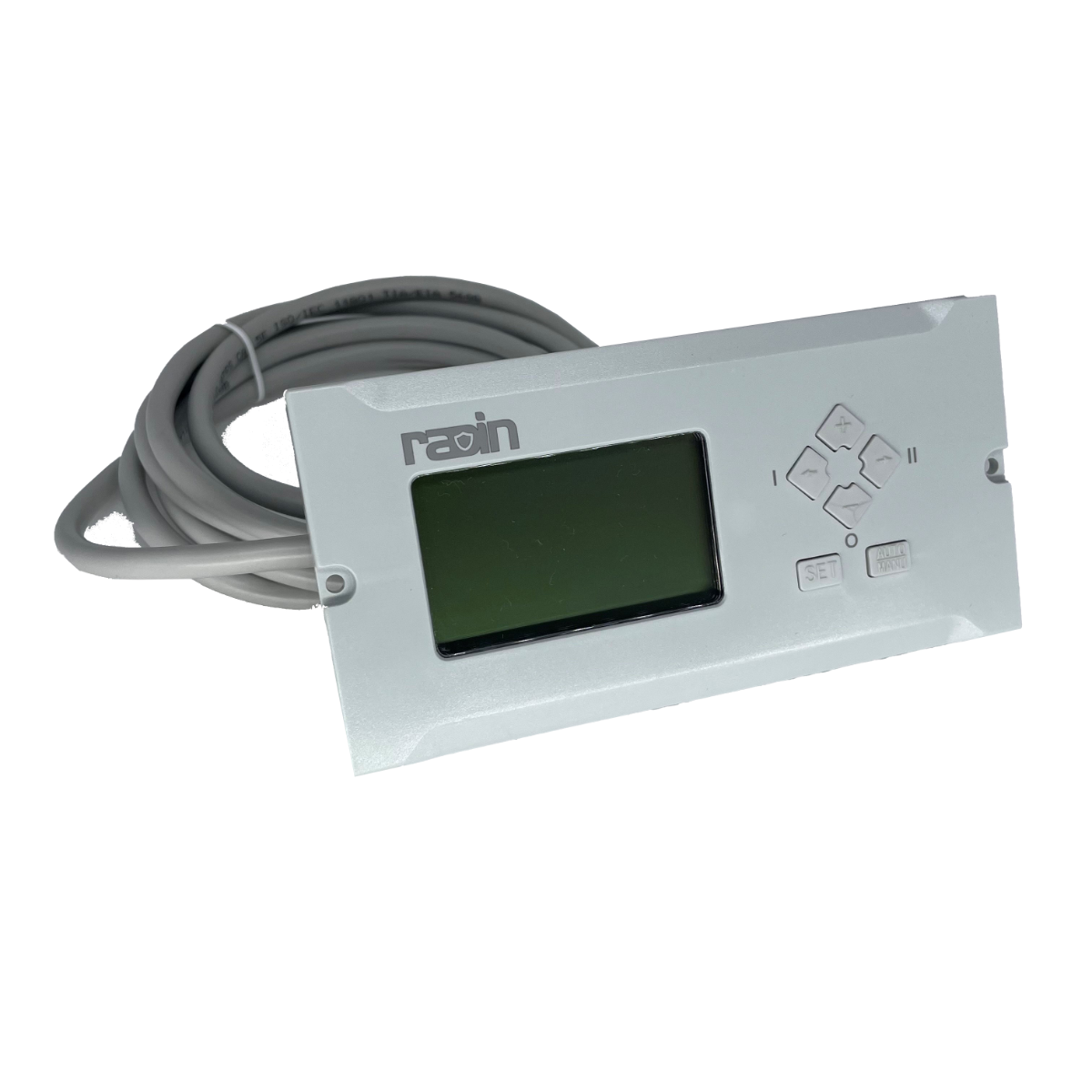

Remote LCD Programmer - RDS5 ATS RS485, 2m Cable is a remote display and programming module designed for RDS5 automatic transfer switches. It provides real-time status indication and full parameter access from the panel door for faster commissioning and diagnostics.
🔧 Technical Highlights:
- Function: Remote status display and parameter programming for RDS5 ATS
- Interface: RS485 connection to RDS5 controller
- Supply: 12-24 V DC (powered via RDS5)
- Cable: 2 m
- Mounting: Panel mount (door interface)
✅ Benefits:
- Enables setup and diagnostics without direct access to the ATS mechanism inside the enclosure.
- Provides a clear interface for live status, alarms and operating mode indication.
- Supports faster commissioning and service work on generator changeover panels.
- RS485 connection supports longer-distance mounting on the panel door.
🚀 Applications:
- RDS5 ATS changeover panels requiring door-mounted HMI access.
- Facilities maintenance where quick fault review and parameter access is needed.
- Generator-backed systems in commercial, industrial and infrastructure sites.
A practical accessory for adding convenient front-panel access to RDS5 ATS settings and status.
FAQs
- Q: Is RD-LCD02 compatible with RDS5 automatic transfer switches?
A: Yes. It is designed specifically for RDS5 ATS units to provide remote display and parameter programming.
- Q: How is the RD-LCD02 connected and powered?
A: It connects via the RDS5 RS485 interface and is powered from the RDS5 controller (12-24 V DC).
