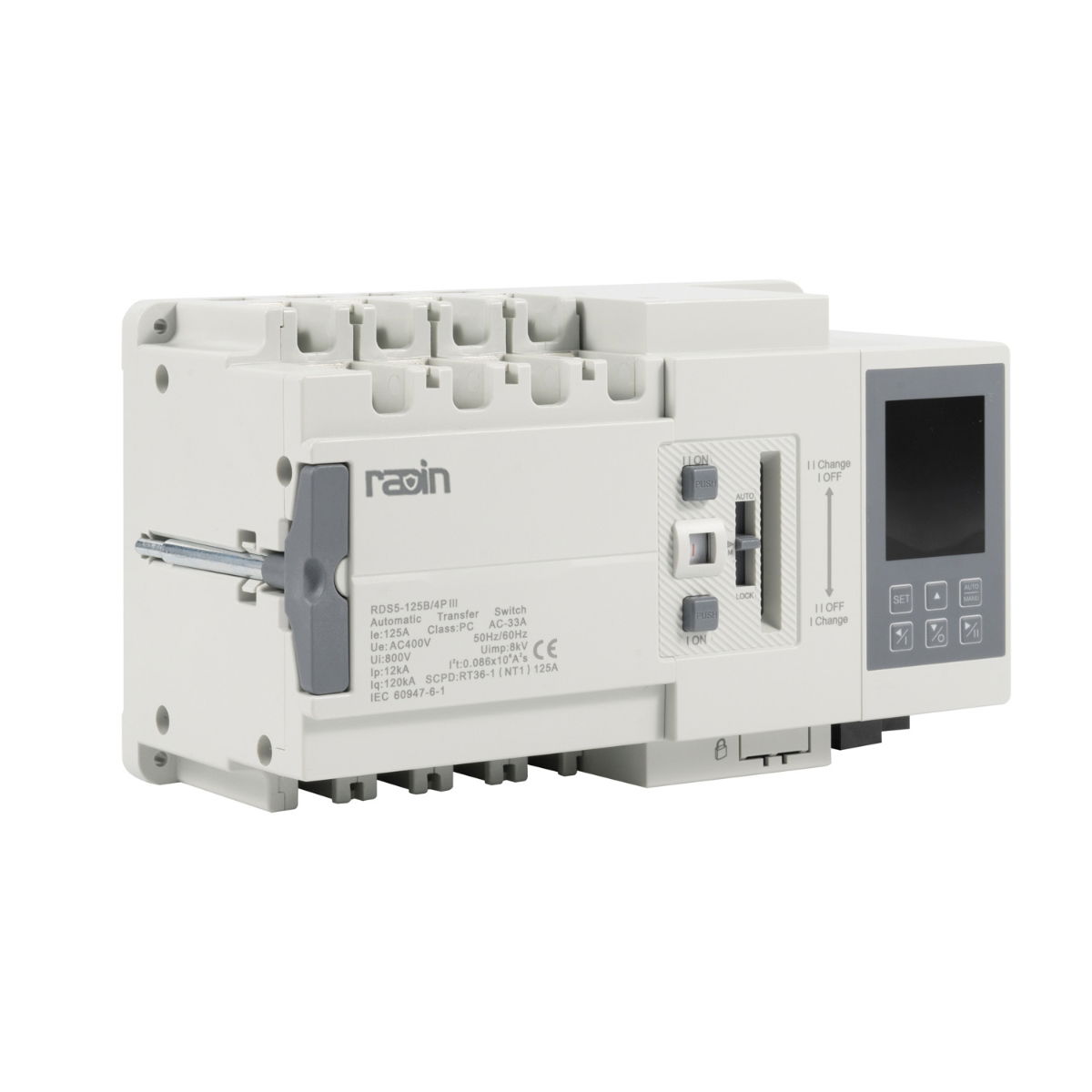

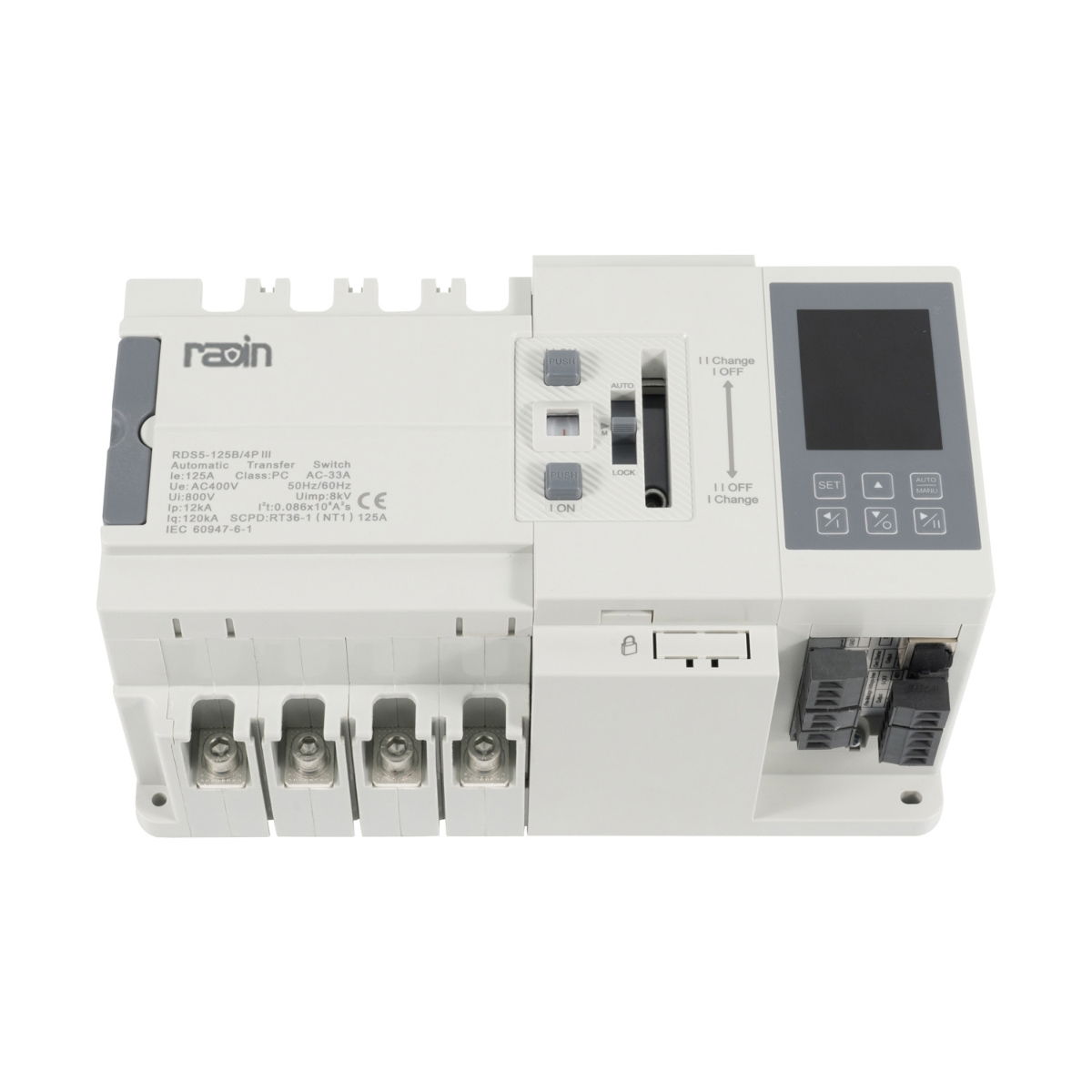

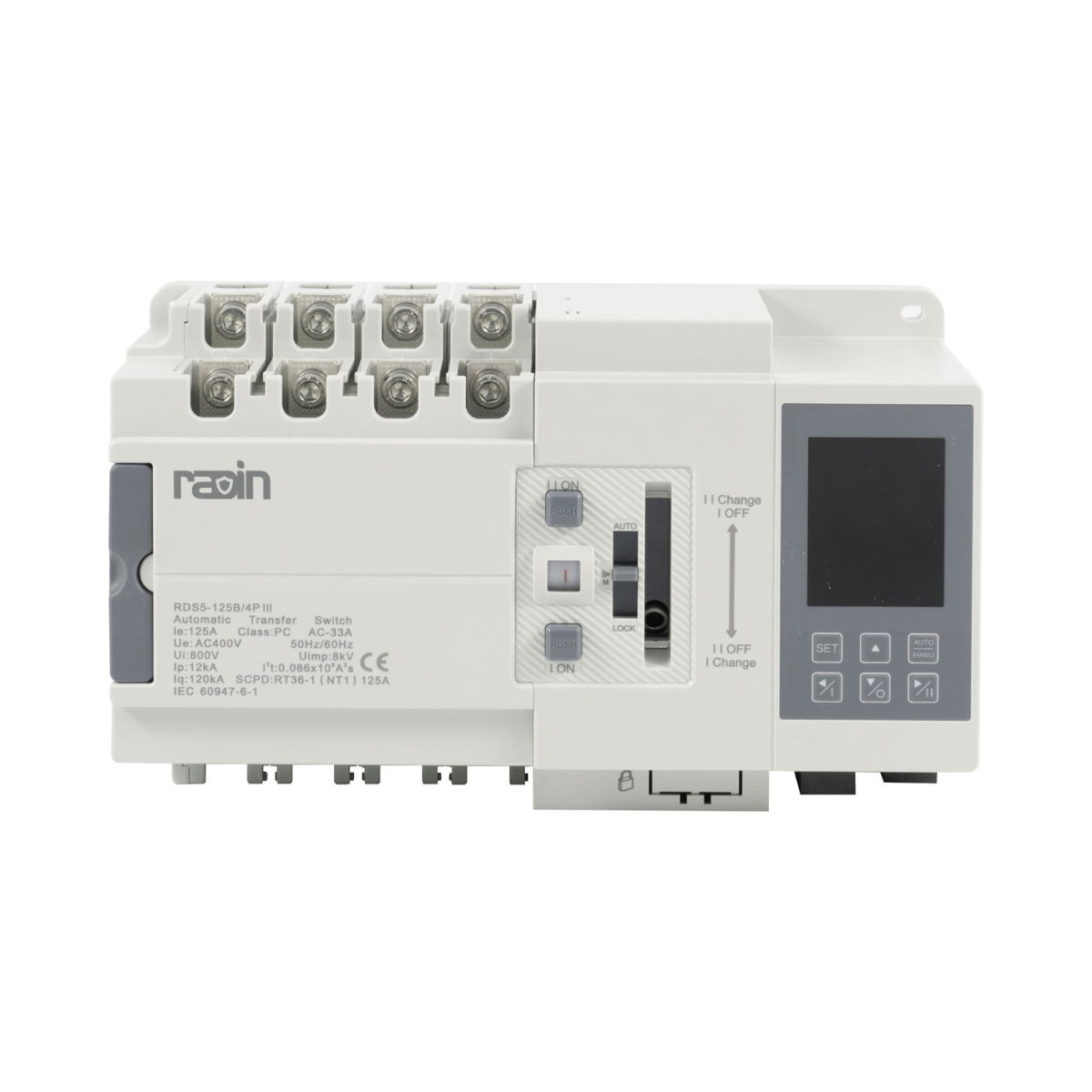

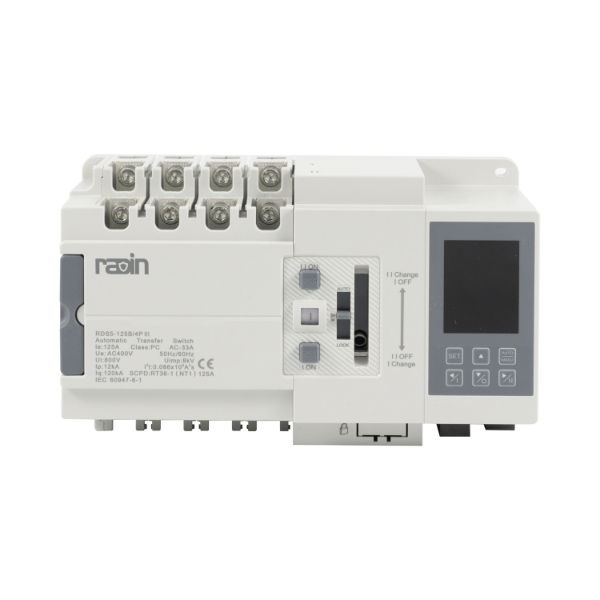

40A 4P RDS5 Automatic Transfer Switch is a robust 3-position ATS offering automatic changeover between two power sources. It includes an LED display, programmable delay functions, and advanced protection features, making it ideal for reliable dual power switching.
🔧 Technical Highlights:
- Rated Current: 40A
- Poles: 4P (Three-phase + Neutral)
- Rated Voltage: AC400/415V 50Hz
- Switching Positions: Source I, Source II, OFF (3-position)
- Display: Integrated LED panel
- Changeover: Instant with programmable delay
- Dimensions (W x H x D): 340 x 210 x 145 mm
✅ Features:
- Auto/manual selection with status and fault monitoring
- Comprehensive electrical protection functions
- RS485 Modbus support and generator start signal
🚀 Applications:
- Commercial and industrial facilities
- Emergency power systems
- Automation and control panels
Dependable and intelligent 40A ATS for seamless backup power transition.
