125A 4 pole, 3 position ATS, Instant changeover with fire-link & RS485 & optional external display

Stock Code: RDS5-125-4PIIIBZ125A

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

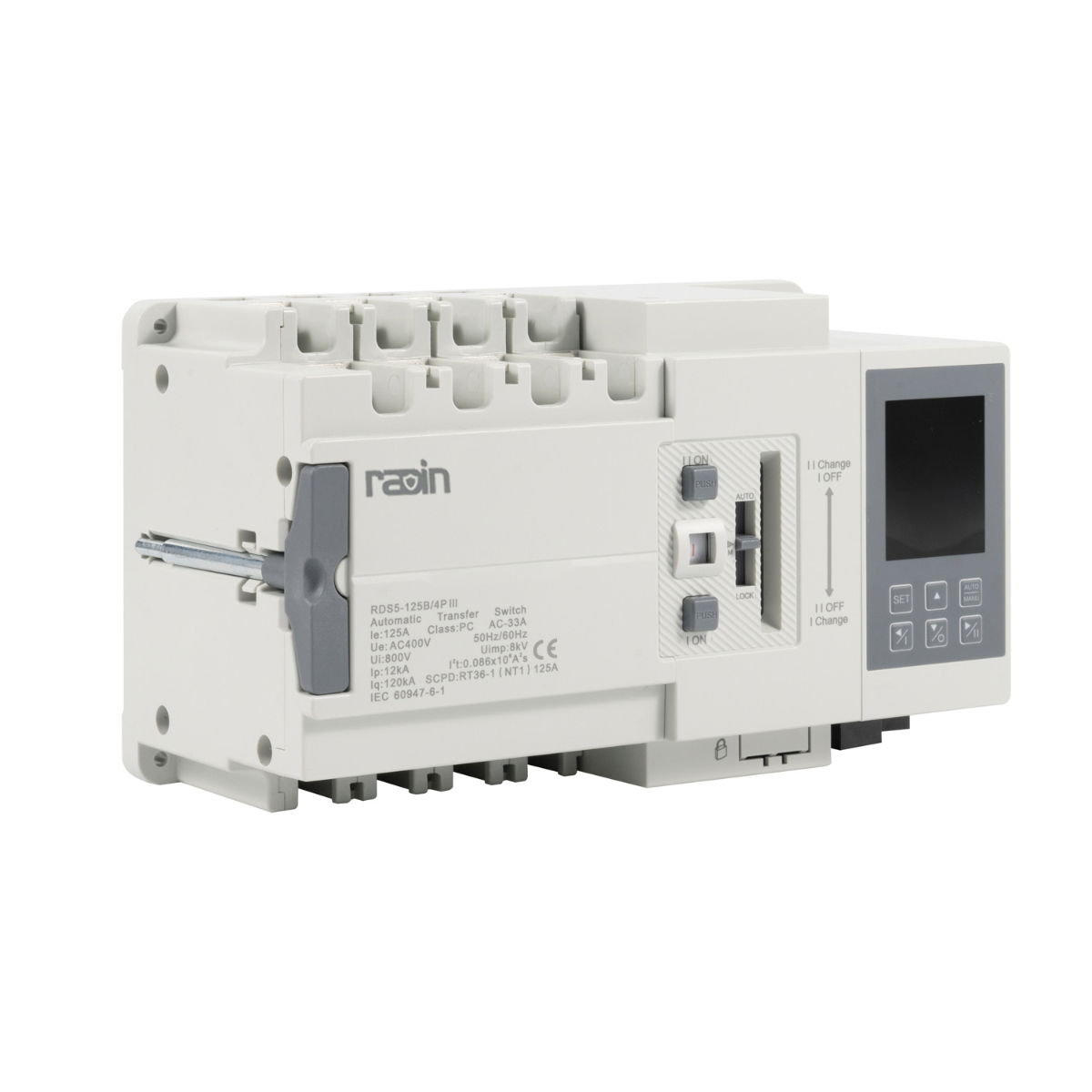

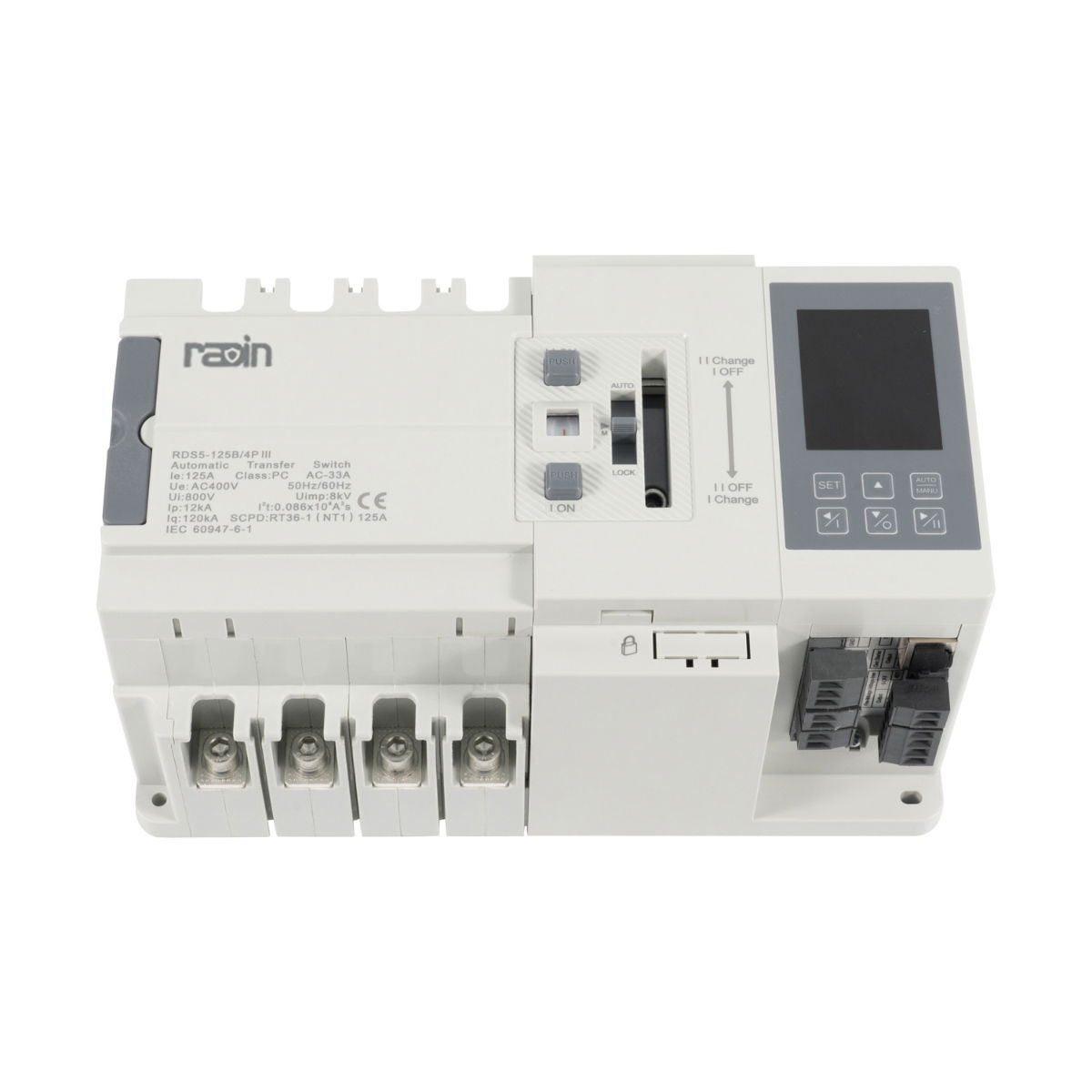

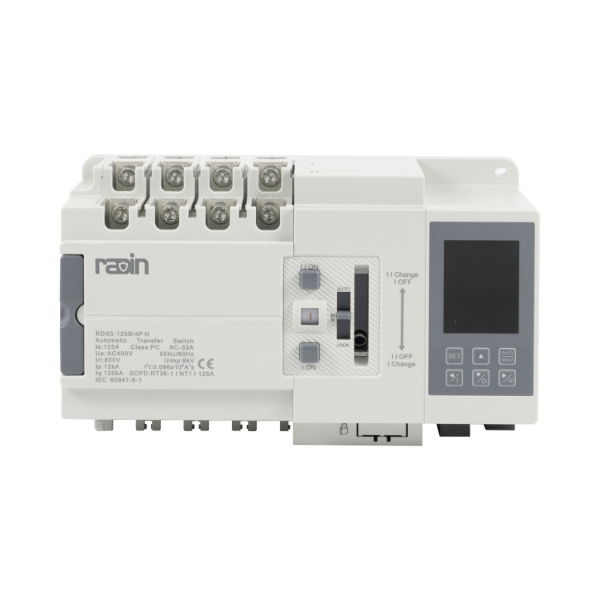

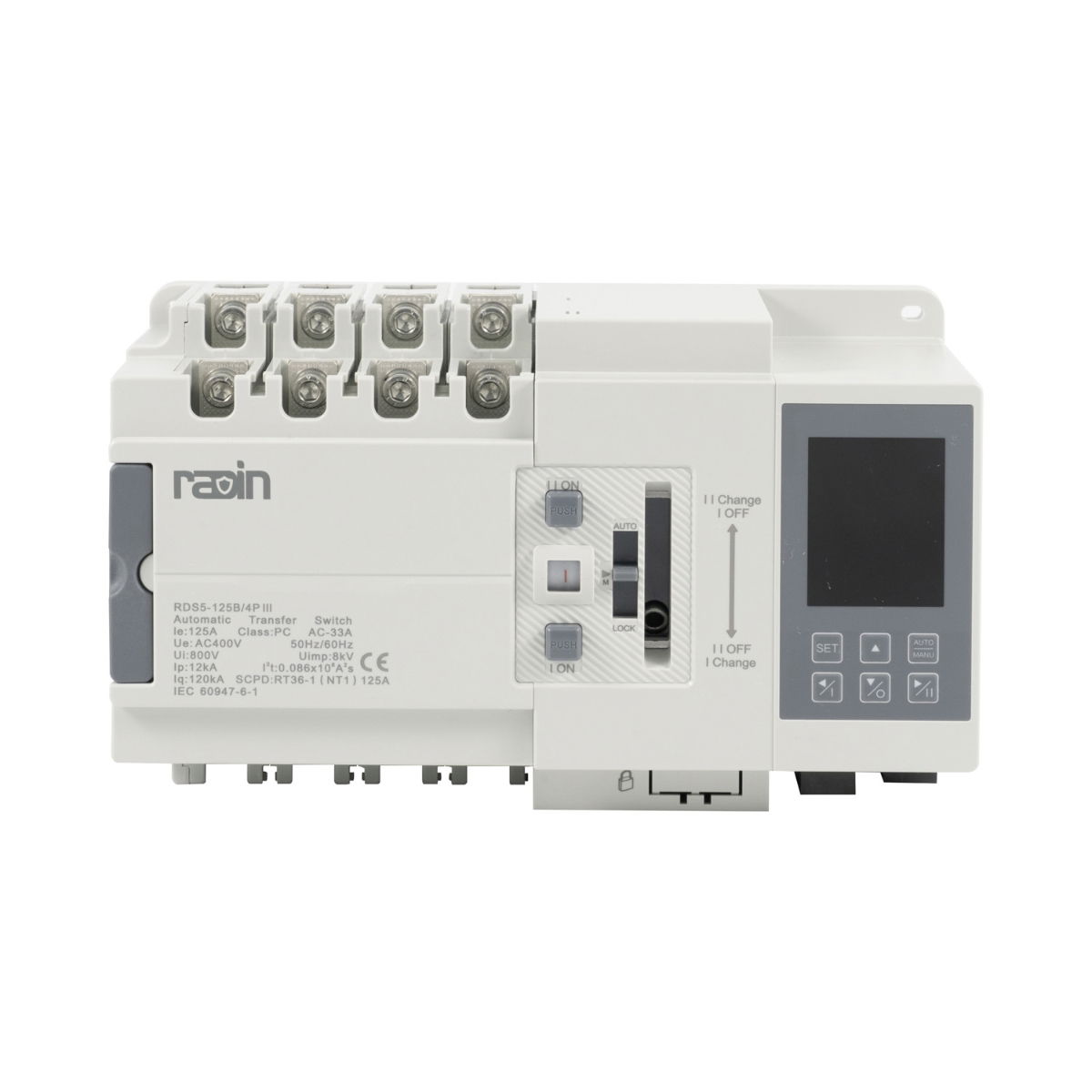

125A 4P RDS5 Automatic Transfer Switch is a robust 3-position ATS offering automatic changeover between two power sources. It includes an LED display, programmable delay functions, and advanced protection features, making it ideal for reliable dual power switching.

🔧 Technical Highlights:

  • Rated Current: 125A
  • Poles: 4P (Three-phase + Neutral)
  • Rated Voltage: AC400/415V 50Hz
  • Switching Positions: Source I, Source II, OFF (3-position)
  • Display: Integrated LED panel
  • Changeover: Instant with programmable delay
  • Dimensions (W x H x D): 340 x 210 x 145 mm

✅ Features:

  • Auto/manual selection with status and fault monitoring
  • Comprehensive electrical protection functions
  • RS485 Modbus support and generator start signal

🚀 Applications:

  • Commercial and industrial facilities
  • Emergency power systems
  • Automation and control panels

Dependable and intelligent 125A ATS for seamless backup power transition.

Rated Current125A
Rated VoltageAC400/415V 50Hz
Number of Poles4
Switching PositionsSource I, Source II, OFF (3-position)
StyleAuto
Special FeaturesIntegrated Display
Type File Name
Data Sheet Radin New ATS Catalog.pdf
Instruction Manual RDS5 User Manual 25.5.pdf
