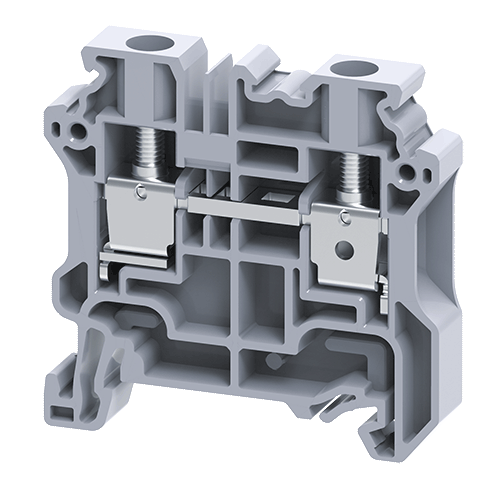

6 MM² FEED THROUGH SCREW CLAMP TERMINAL delivers reliable, space-saving wiring for modern control panels with robust screw-clamp performance.
🔧 Technical Highlights:
- Rated Cross-Section: 6 mm²
- Rated Current: 36 A
- Rated Voltage: 630 V (IEC), 600 V (UL)
- Strip Length: 10 mm
- Pitch / Width: —
- Conductor Range: per catalogue
- Material: Polyamide 6.6 (PA66), V-0
- Rated Impulse Withstand: 8 kV; Pollution Degree 3
- Standards: IEC 60947-7-1, UL 1059
- Connection: 2-wire screw clamp feed-through
- Colour: Grey
✅ Benefits:
- High-retention screw clamp for tough environments
- Clear marking and jumper options for fast assembly
- Consistent profile simplifies panel layout
🚀 Applications:
- Industrial control panels and MCCs
- OEM machinery and automation
- Power distribution and field I/O
Reliable, high-density terminations with proven screw-clamp durability.
FAQs
- Q: Are these components compatible with standard DIN rail sizes?
A: Yes. They are designed for IEC/EN DIN rail systems commonly used in control panels.
- Q: Do you offer end accessories such as end stops, markers and partition plates?
A: Yes. Matching accessories are available to complete safe and tidy panel installations.
