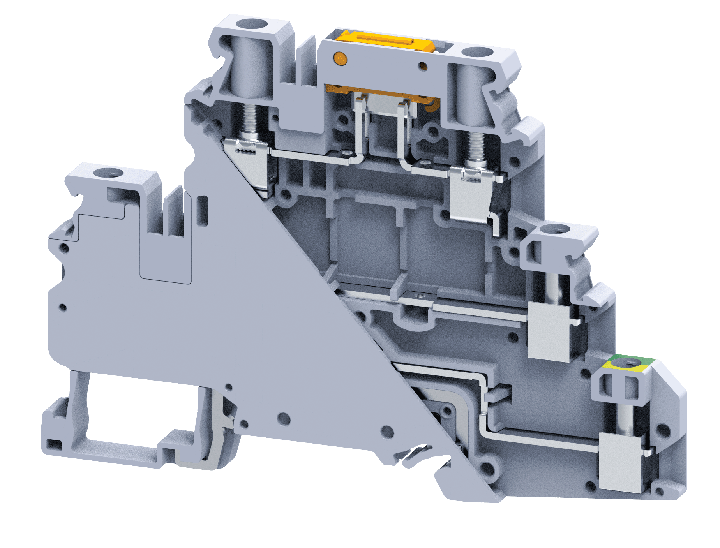

The Connectwell CYDLGK4 is a compact and durable DIN Rail Terminal Block engineered for secure and efficient electrical connections in modern control panels.
🔧 Technical Highlights:
- Connections: 2 connections
- Clamp Type: Screw Clamp
- Mounting: DIN Rail 35 mm (EN 60715)
- Material: Flame-retardant Polyamide 6.6
- Colour: Grey body with Green-Yellow marking on bottom level cable entry
- Rated Current: 24 A | Rated Voltage: 500 V (IEC), 600 V (UL)
- Rated Voltage: 500 V (IEC), 600 V (UL)
- Operating Temperature: -40°C to +105°C
✅ Benefits:
- Ensures reliable contact and long-term electrical performance
- Optimized for compact wiring arrangements and easy DIN rail mounting
- Suitable for use in automation, power distribution, and instrumentation
🚀 Applications:
- Industrial control panels
- PLC and I/O systems
- Signal and power distribution blocks
CYDLGK4 delivers a professional-grade solution for clean and consistent terminal wiring.
FAQs
- Q: Are these components compatible with standard DIN rail sizes?
A: Yes. They are designed for IEC/EN DIN rail systems commonly used in control panels.
- Q: Do you offer end accessories such as end stops, markers and partition plates?
A: Yes. Matching accessories are available to complete safe and tidy panel installations.
