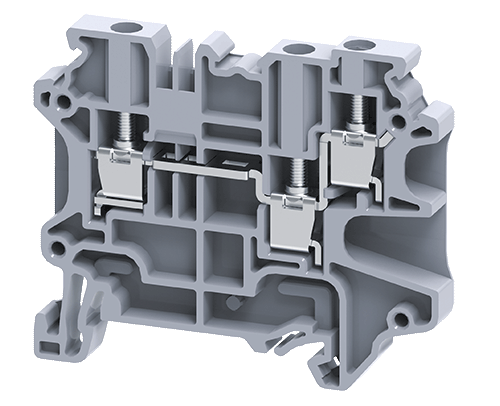

4 MM² FEED THROUGH SCREW CLAMP 3 WIRE TERMINAL BLOCK delivers reliable, space-saving wiring for modern control panels with robust screw-clamp performance.
🔧 Technical Highlights:
- Rated Cross-Section: 4 mm²
- Rated Current: 28 A
- Rated Voltage: 400 V (IEC), 600 V (UL)
- Strip Length: 9 mm
- Pitch / Width: 6 mm
- Conductor Range: per catalogue
- Material: Polyamide 6.6 (PA66), V-0
- Rated Impulse Withstand: 8 kV; Pollution Degree 3
- Standards: IEC 60947-7-1, UL 1059
- Connection: 3-wire screw clamp feed-through
- Colour: Grey
✅ Benefits:
- High-retention screw clamp for tough environments
- Clear marking and jumper options for fast assembly
- Consistent profile simplifies panel layout
🚀 Applications:
- Industrial control panels and MCCs
- OEM machinery and automation
- Power distribution and field I/O
Reliable, high-density terminations with proven screw-clamp durability.
