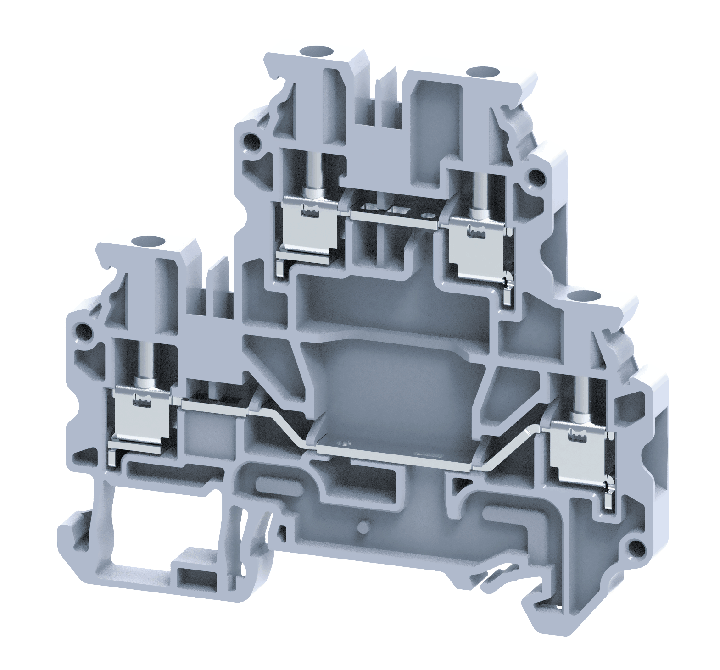

Double-Level Screw Clamp Terminal Block, 2.5 mm2, Grey

Double-Level Screw Clamp Terminal Block, 2.5 mm2, Grey is a double-level DIN rail terminal block designed for high-density industrial wiring. It provides two feed-through levels in a compact 5 mm wide body with screw clamp connections.

Stock Code: CYDL2.5

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock
Product not available

Double-Level Screw Clamp Terminal Block, 2.5 mm2, Grey is a double-level DIN rail terminal block designed for high-density industrial wiring. It provides two feed-through levels in a compact 5 mm wide body with screw clamp connections.

🔧 Technical Highlights:

  • 2.5 mm2 screw clamp terminal block for CY series DIN rail assemblies
  • Connection range up to 2.5 mm2 flexible conductor or 4.0 mm2 solid conductor
  • Rated voltage: IEC 500 V; UL 300 V; CSA 300 V
  • Rated current: IEC 24 A; UL 20 A; CSA 20 A
  • Width x length: 5 x 70.5 mm

✅ Benefits:

  • Saves panel space with a compact double-level wiring layout
  • Supports clear, repeatable screw clamp termination
  • Allows jumpering at both terminal levels
  • Uses standards-specific voltage ratings instead of a single unsupported value

🚀 Applications:

  • High-density control panel wiring
  • DIN rail terminal assemblies
  • Machine control and distribution circuits
  • Industrial automation panels

Built for compact, reliable double-level wiring in industrial terminal assemblies.

FAQs

  • Q: What conductor size does this terminal block support?
    A: It supports up to 2.5 mm2 flexible conductor or 4.0 mm2 solid conductor, depending on conductor type.
  • Q: What voltage rating should be shown for CYDL2.5?
    A: Use the standards-specific ratings: IEC 500 V, UL 300 V, and CSA 300 V.

Width5mm
ColourGrey
Terminal TypeScrew Terminals
FunctionFeed Through
Wire Size (mm²)0.2 - 2.5mm²
Wire Size (AWG)24 - 12AWG
Number of Connections4
Current Rating24A (IEC), 20A (UL)
Voltage Rating500V (IEC), 300V (UL)
Number of Levels2
Type File Name
Data Sheet CYDL2.5.pdf
