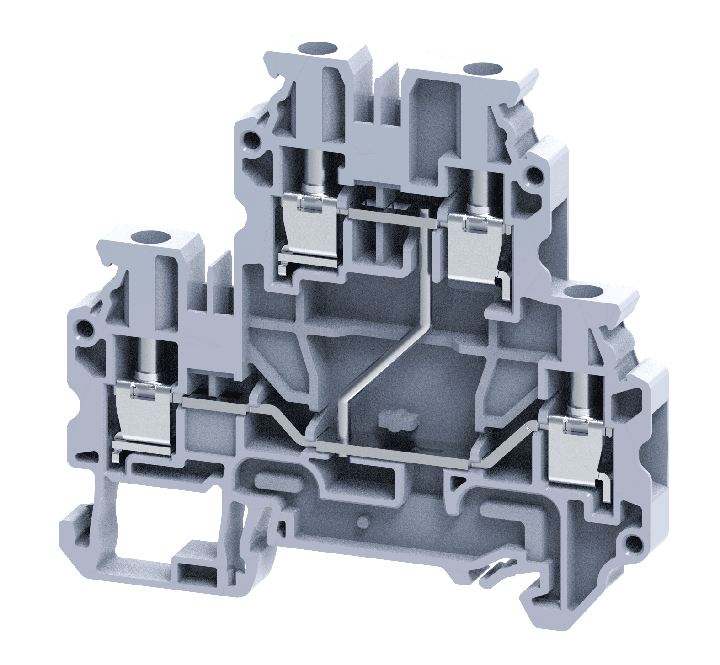

2.5mm² 2 LEVEL FEED THROUGH SCREW CLAMP INTERNAL SHORT Terminal Block

Stock Code: CYDL2.5(I.S)

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

The Connectwell CYDL2.5(I.S) is a compact and durable DIN Rail Terminal Block engineered for secure and efficient electrical connections in modern control panels.

🔧 Technical Highlights:


  • Connections: 2 connections
  •
  • Clamp Type: Screw Clamp
  •
  • Mounting: 35mm DIN Rail (EN 60715)
  •
  • Material: Flame-retardant Polyamide 6.6
  •
  • Colour: Grey
  •
  • Rated Current: 24 A
  •
  • Rated Voltage: 800 V
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • Ensures reliable contact and long-term electrical performance
  •
  • Optimized for compact wiring arrangements and easy DIN rail mounting
  •
  • Suitable for use in automation, power distribution, and instrumentation

🚀 Applications:


  • Industrial control panels
  •
  • PLC and I/O systems
  •
  • Signal and power distribution blocks

CYDL2.5(I.S) delivers a professional-grade solution for clean and consistent terminal wiring.

Wire Size (mm²)0.2 - 2.5mm²
Width5mm
ColourGrey
Terminal TypeScrew Terminals
FunctionFeed Through
Wire Size (AWG)24 - 12AWG
Number of Connections4
Number of Levels2
Current Rating24A (IEC), 20A (UL)
Voltage Rating500V (IEC), 300V (UL)
Special FeaturesInternally Shorted
Type File Name
Data Sheet CYDL2.5(I.S).pdf
