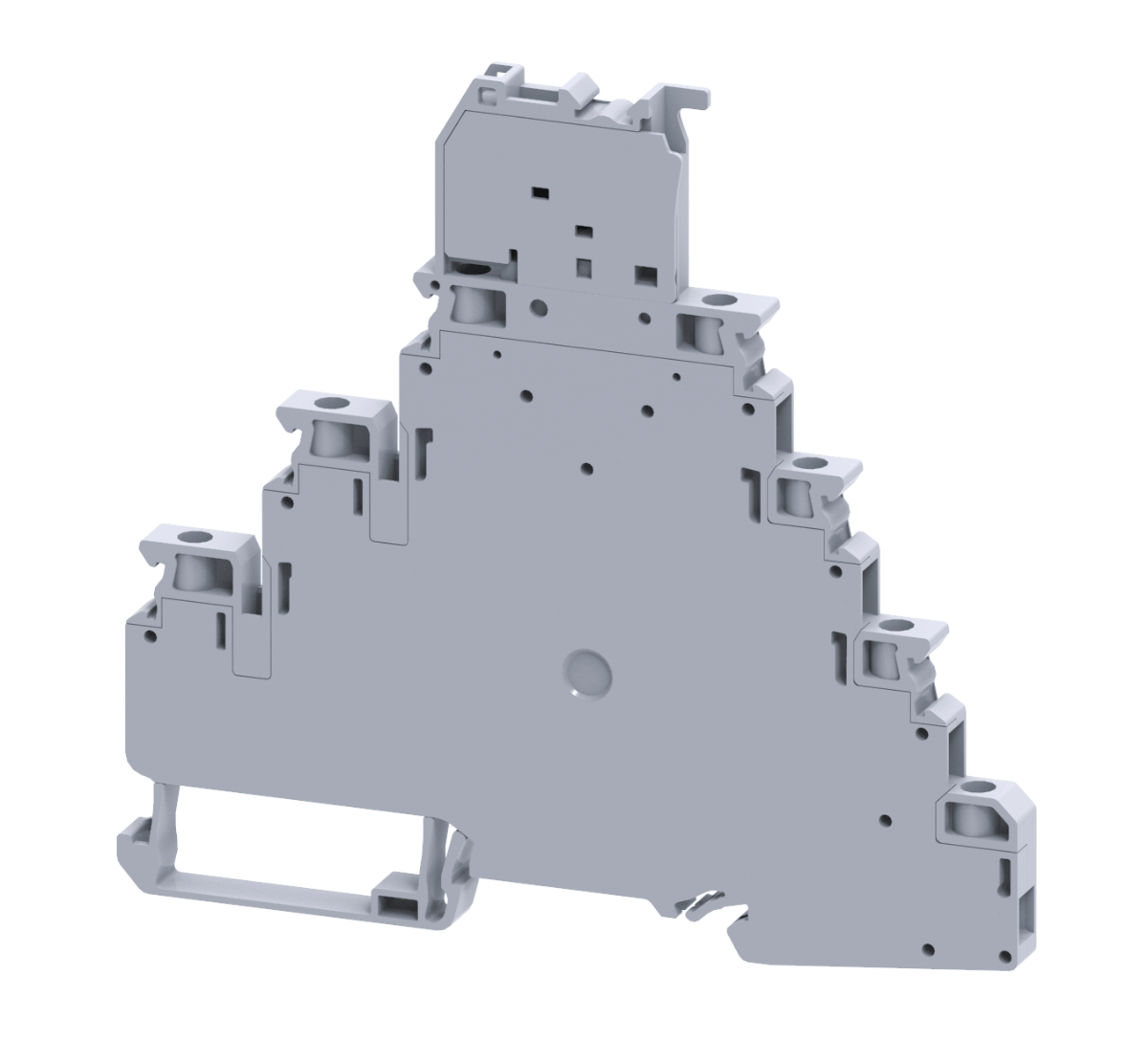

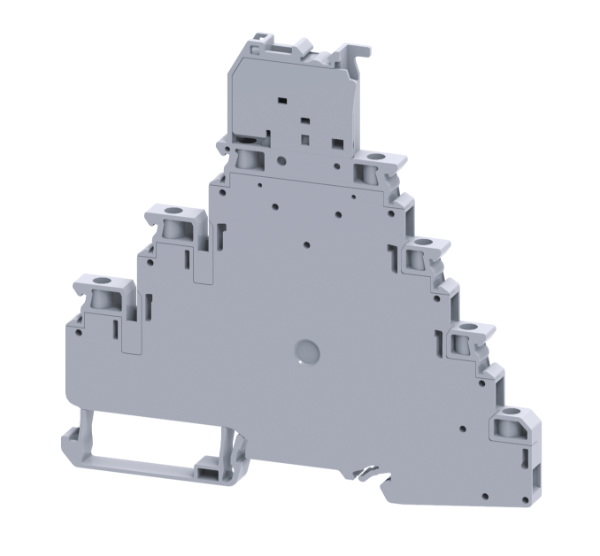

2.5MM² 3 LEVEL SCREW CLAMP FUSE GROUND Terminal Block

Stock Code: CYTLGF2.5

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

The Connectwell CYTLGF2.5 is a Triple-Level Ground + Fused Terminal Block engineered for high-density modular wiring where both circuit protection and earthing are required in a compact space. The bottom level provides direct grounding via DIN rail, while the upper levels incorporate a fuse connection and feed-through terminals.

🔧 Technical Highlights:

  • Connections: 6 total (2 per level)
  • Clamp Type: Screw Clamp
  • Mounting: 35mm DIN Rail (EN 60715)
  • Material: Flame-retardant Polyamide 6.6
  • Colour: Grey body with Green-Yellow marking on bottom level cable entry
  • Rated Current: 6.3 A (fused)
  • Rated Voltage: 250 V
  • Operating Temperature: -40°C to +105°C

✅ Benefits:

  • Combines circuit protection and earthing in one block
  • Saves DIN rail space by consolidating three terminal functions
  • Supports efficient signal and power management

🚀 Applications:

  • Machine and control panel wiring
  • Sensor protection with grounding
  • Compact automation and distribution panels

CYTLGF2.5 is the ultimate all-in-one terminal for protection, earthing, and distribution in space-limited control cabinets.

Wire Size (mm²)0.2 - 2.5mm²
Width6mm
ColourGreen/Yellow
Terminal TypeScrew Terminals
FunctionGround
Wire Size (AWG)24 - 12AWG
Number of Connections6
Number of Levels3
Special FeaturesFused
Type File Name
Data Sheet CYTLGF2.5.pdf
