4mm² 2 LEVEL PUSH IN SPRING CLAMP Terminal Block

Stock Code: CPDL4

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

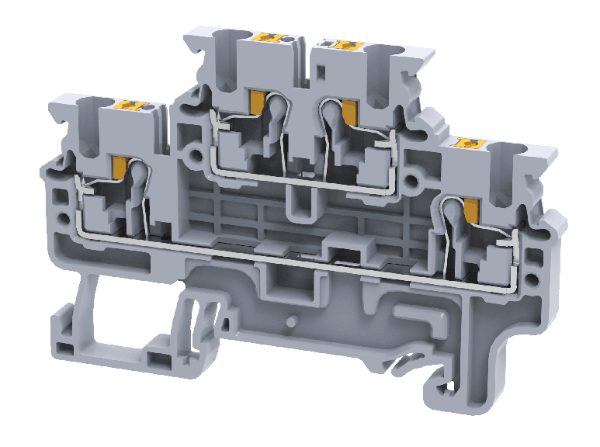

The Connectwell CPDL4 is a Double-Level Feed-Through Terminal Block supporting up to 4 mm² conductors. It enables two-tier wiring with independent connections per level, ideal for compact signal distribution.

🔧 Technical Highlights:

  • Connections: 4 total (2 per level)
  • Clamp Type: Push-In Clamp
  • Mounting: 35mm DIN Rail
  • Material: PA 6.6
  • Colour: Grey
  • Rated: 32 A / 800 V
  • Temp: -40°C to +105°C

✅ Benefits:

  • Space-saving two-level feed-through
  • Vibration-resistant push-in connection

🚀 Applications:

  • Signal wiring
  • PLC I/O distribution

CPDL4 offers reliable dual-tier wiring in tight control cabinets.

Wire Size (mm²)0.2 - 4mm²
Width6mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 10 AWG
Number of Connections4
Number of Levels2
Current Rating28A (IEC), 28A (UL)
Voltage Rating500V (IEC), 300V (UL)
Type File Name
Data Sheet CPDL4.pdf
