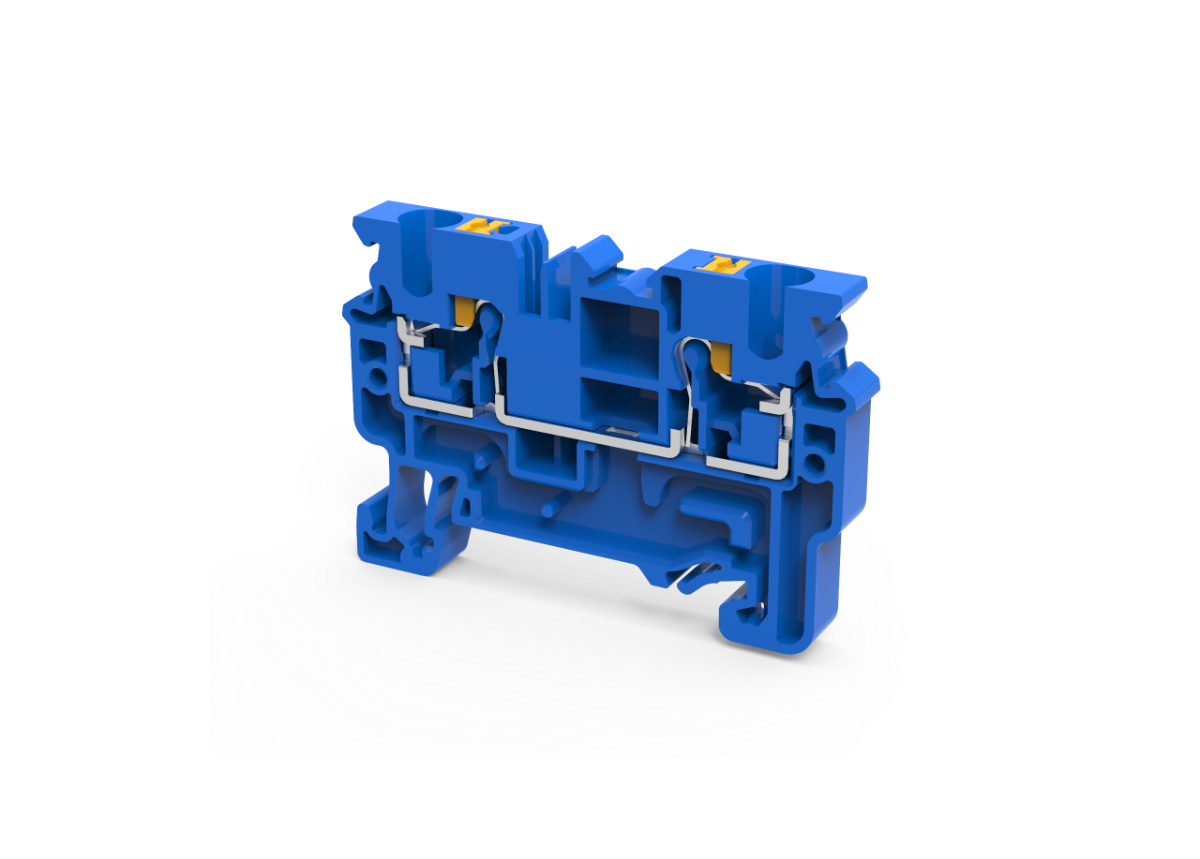

4 mm2 FEED THROUGH PUSH IN TERMINAL BLOCK BLUE delivers reliable, space-saving wiring for modern control panels with fast push-in connection and robust performance.
🔧 Technical Highlights:
- Rated Cross-Section: 4 mm2
- Rated Current: 30 A
- Rated Voltage: 1000 V (IEC), 600 V (UL)
- Strip Length: 12 mm
- Pitch / Width: 6.2 mm
- Conductor Range: typical (per catalogue)
- Material: Polyamide 6.6 (PA66), V-0
- Rated Impulse Withstand: 8 kV; Pollution Degree 3
- Standards: IEC 60947-7-1, UL 1059
- Connection: 2-wire push-in feed-through
- Colour: Blue
✅ Benefits:
- Tool-free push-in wiring cuts assembly time
- Shock- and vibration-safe spring contact
- Compact pitch maximises rail density
🚀 Applications:
- Industrial control panels and MCCs
- OEM machinery and automation
- Building services and BMS I/O
The CP4 provides fast, tool-free terminations with a compact footprint.
FAQs
- Q: Are these components compatible with standard DIN rail sizes?
A: Yes. They are designed for IEC/EN DIN rail systems commonly used in control panels.
- Q: Do you offer end accessories such as end stops, markers and partition plates?
A: Yes. Matching accessories are available to complete safe and tidy panel installations.
