2.5mm² 2 WIRE PUSH IN DISCONNECT Terminal Block

Stock Code: CPK2.5

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

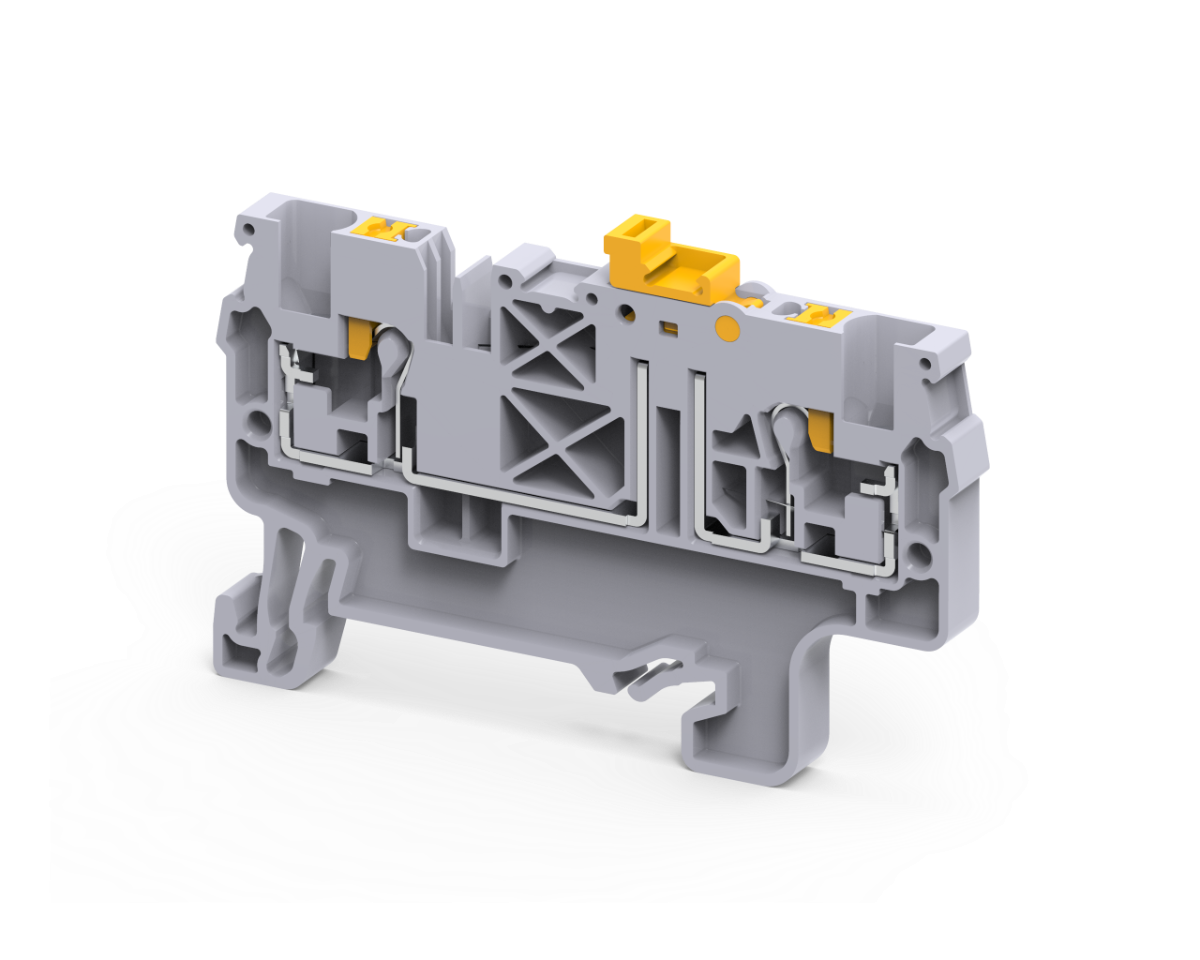

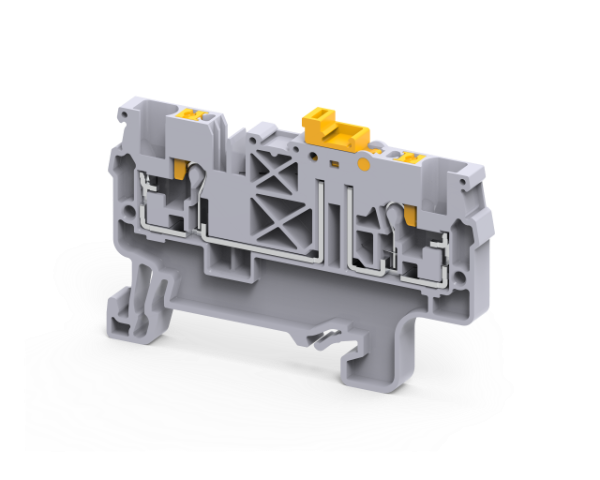

The Connectwell CPK2.5 is a Single-Level Knife Disconnect Terminal Block for 2.5 mm² conductors designed to provide fast and safe circuit isolation in signal and control applications.

🔧 Technical Highlights:


  • Connections: 2 total (single level)
  •
  • Clamp Type: Push-In Clamp
  •
  • Mounting: 35mm DIN Rail (EN 60715)
  •
  • Material: Flame-retardant Polyamide 6.6
  •
  • Colour: Grey
  •
  • Rated Current: 24 A
  •
  • Rated Voltage: 800 V
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • Provides inline signal disconnection without removing wires
  •
  • Ideal for loop checks and fault isolation
  •
  • Compact design supports modular wiring

🚀 Applications:


  • Control and automation panels
  •
  • PLC signal testing
  •
  • Instrumentation circuits

CPK2.5 enables safe, modular disconnection in compact control environments.

Wire Size (mm²)0.2 - 2.5mm²
Width5mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 12AWG
Number of Connections2
Number of Levels1
Current Rating20A (IEC), 16A (UL)
Voltage Rating1000V (IEC), 600V (UL)
Special FeaturesDisconnect
Type File Name
Data Sheet CPK2.5.pdf
