2.5mm² 2 LEVEL PUSH IN SPRING CLAMP FUSE Terminal Block

Stock Code: CPDLF2.5

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

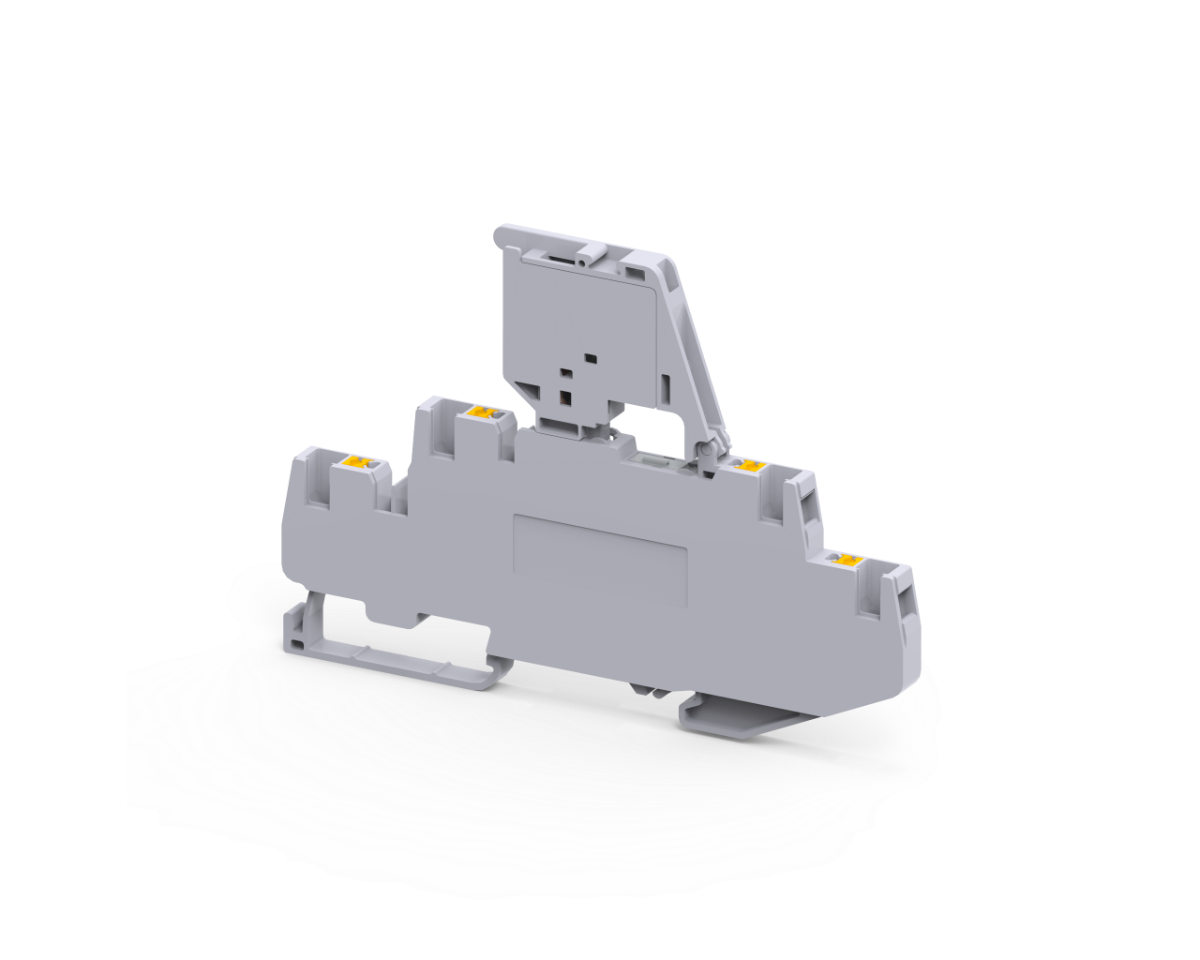

The Connectwell CPDLF2.5 is a Double-Level Fused Terminal Block designed to integrate circuit protection into compact panel layouts. The top level includes a fuse holder for 5x20 mm glass fuses, while the bottom level is a feed-through connection.

🔧 Technical Highlights:


  • Connections: 4 total (2 per level)
  •
  • Clamp Type: Push-In Clamp
  •
  • Mounting: 35mm DIN Rail (EN 60715)
  •
  • Material: Flame-retardant Polyamide 6.6
  •
  • Colour: Grey
  •
  • Rated Current: 6.3 A (fused)
  •
  • Rated Voltage: 250 V
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • Protects control circuits and sensors
  •
  • Compact layout saves DIN rail space
  •
  • Visual fuse-blow indication (optional)

🚀 Applications:


  • Sensor or I/O protection in control cabinets
  •
  • Overcurrent protection in PLC systems

CPDLF2.5 offers integrated circuit protection in space-saving double-level format.

Wire Size (mm²)0.2 - 2.5mm²
Width6mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 12AWG
Number of Connections4
Number of Levels2
Current Rating6.3A (IEC), 6.3A (UL)
Voltage Rating500V (IEC), 300V (UL)
Special FeaturesFused
Type File Name
Data Sheet CPDLF2.5.pdf
