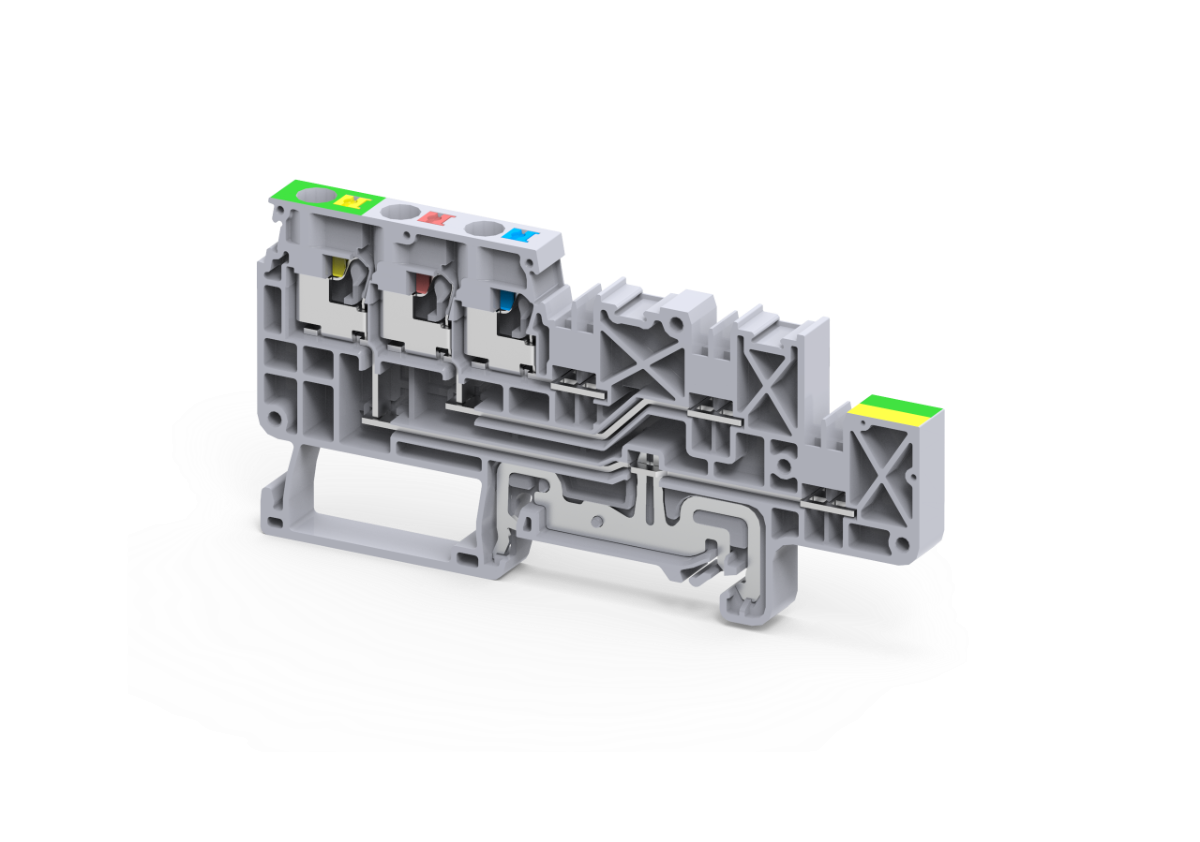

2.5 mm² 4 WIRE PUSH IN POWER GROUND Terminal Block

Stock Code: CPPTG2.5/4

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

The Connectwell CPPTG2.5/4 is a Single-Level Push-In Ground Terminal Block with 4 Connections designed to provide fast and tool-free grounding in compact industrial control panels. The terminal ensures a secure earth connection through its direct DIN rail mounting.

🔧 Technical Highlights:


  • Connections: 4 total (single level)
  •
  • Clamp Type: Push-In Clamp
  •
  • Mounting: 35mm DIN Rail (EN 60715)
  •
  • Material: Flame-retardant Polyamide 6.6
  •
  • Colour: Green-Yellow
  •
  • Rated Current: 24 A
  •
  • Rated Voltage: 800 V
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • DIN rail grounding via highly conductive foot
  •
  • Push-in termination reduces installation time
  •
  • Supports compact earthing for multi-core systems

🚀 Applications:


  • Industrial automation panels
  •
  • Sensor and I/O system grounding
  •
  • Compact machine enclosures

CPPTG2.5/4 ensures safe and streamlined grounding with reliable push-in technology.

Wire Size (mm²)0.2 - 2.5mm²
Width7mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 12AWG
Number of Connections3
Number of Levels1
Current Rating20A (IEC), 16A (UL)
Voltage Rating250V (IEC), 150V (UL)
Special FeaturesSensor & Actuator Power Input with Ground
Type File Name
Data Sheet CPPTG2.5_4.pdf
