2.5 mm² 3 WIRE PUSH IN POWER Terminal Block

Stock Code: CPPT2.5/3

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

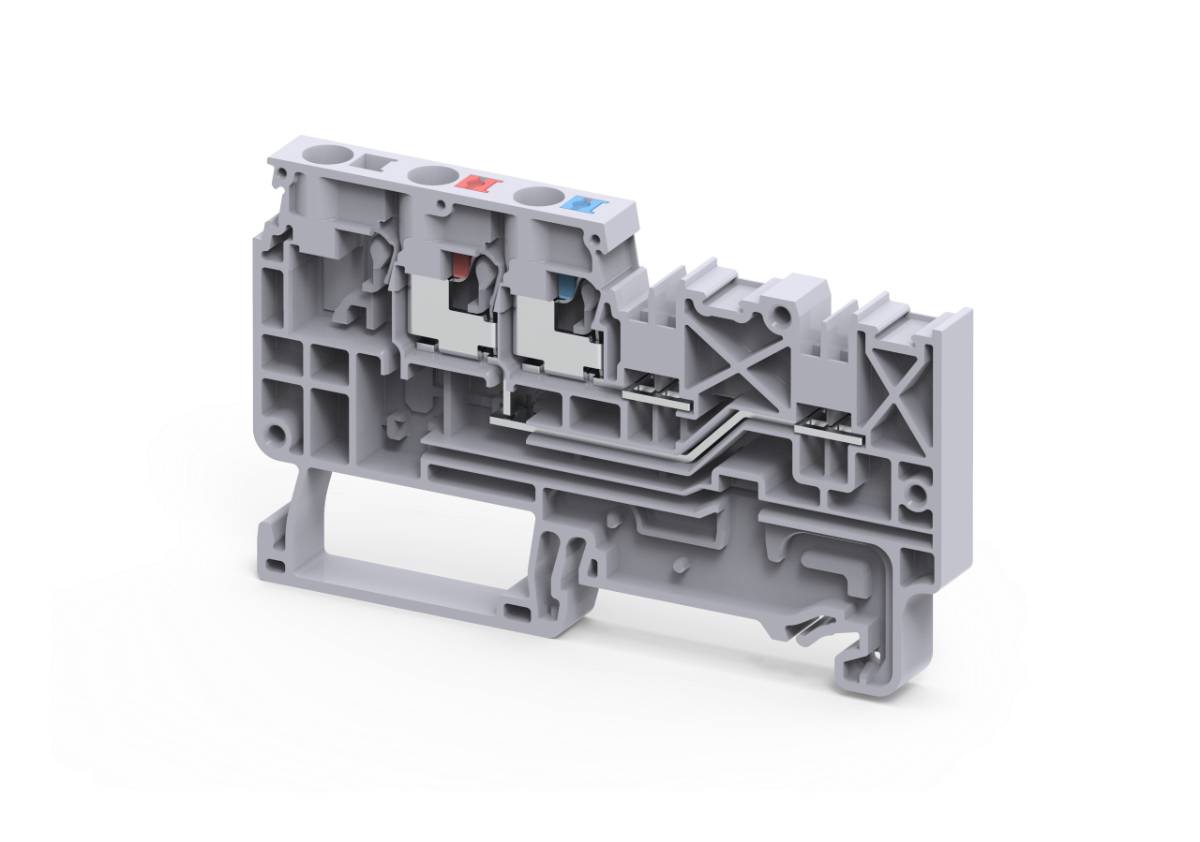

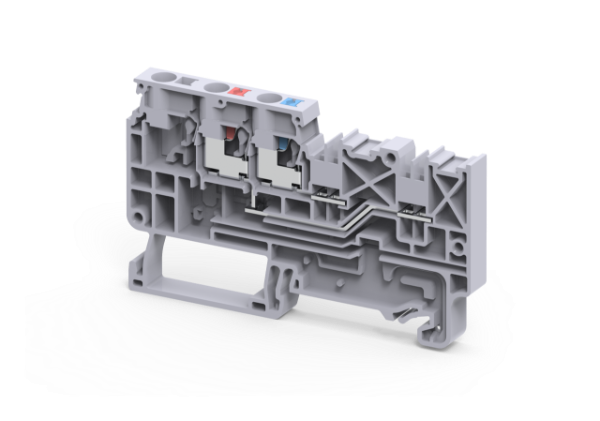

The Connectwell CPPT2.5/3 is a Single-Level Push-In Terminal Block with 3 Connections designed for distributing signal lines compactly and safely in control panels.

🔧 Technical Highlights:

  • Connections: 3 total
  • Clamp Type: Push-In Clamp
  • Mounting: 35mm DIN Rail
  • Material: Polyamide 6.6
  • Colour: Grey
  • Rated Current: 24 A
  • Rated Voltage: 800 V
  • Operating Temperature: -40°C to +105°C

✅ Benefits:

  • Space-saving layout for control wiring
  • Reliable push-in technology

🚀 Applications:

  • Signal distribution in automation panels
  • PLC wiring

CPPT2.5/3 streamlines sensor signal branching in modern control systems.

Wire Size (mm²)0.2 - 2.5mm²
Width7mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 12AWG
Number of Connections3
Number of Levels1
Current Rating20A (IEC), 16A (UL)
Voltage Rating250V (IEC), 150V (UL)
Special FeaturesSensor & Actuator Power Input
Type File Name
Data Sheet CPPT2.5_3.pdf
