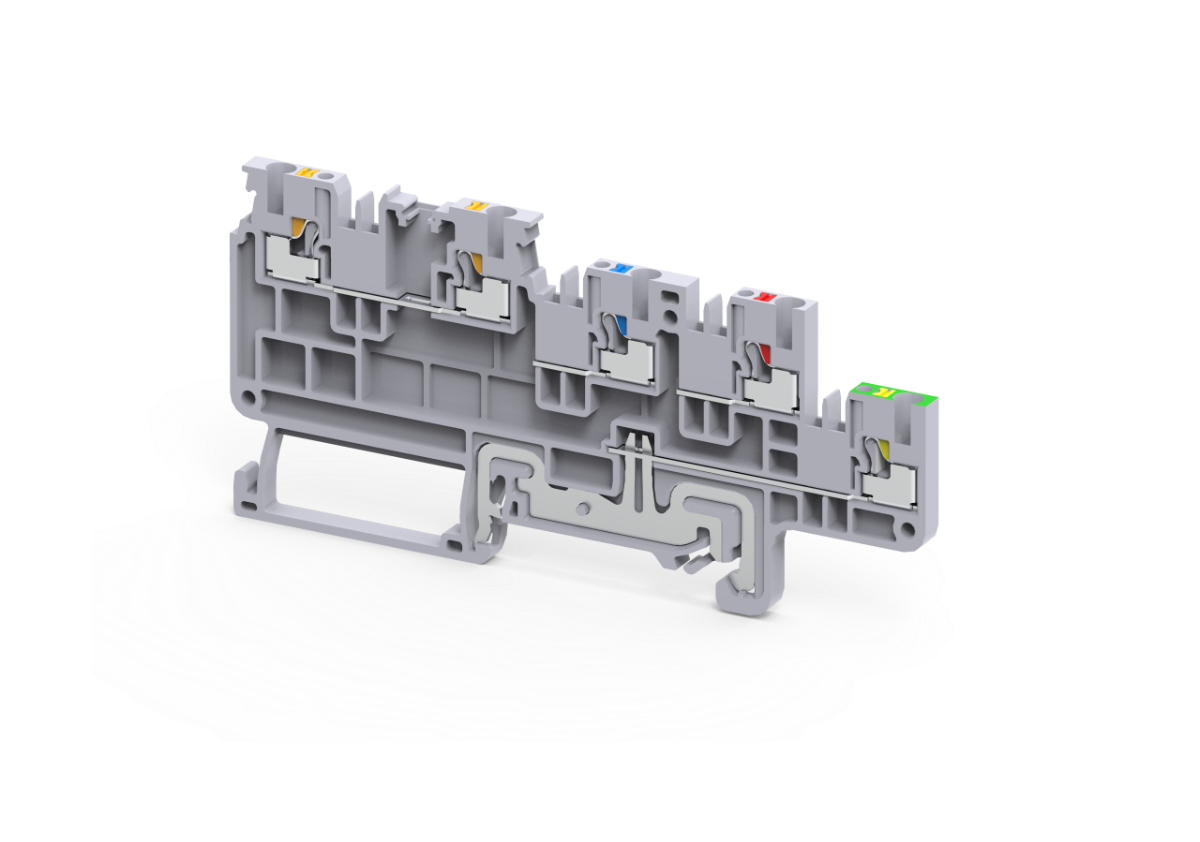

1.5 mm² 4 WIRE PUSH IN SENSOR GROUND Terminal Block

Stock Code: CPSTG1.5/4

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

The Connectwell CPSTG1.5/4 is a compact and durable DIN Rail Terminal Block engineered for secure and efficient electrical connections in modern control panels.

🔧 Technical Highlights:


  • Connections: 4 total (single level)
  •
  • Clamp Type: Push-In Clamp
  •
  • Mounting: 35mm DIN Rail (EN 60715)
  •
  • Material: Flame-retardant Polyamide 6.6
  •
  • Colour: Grey body with Green-Yellow bottom level cable entry for grounding
  •
  • Rated Current: 24 A
  •
  • Rated Voltage: 800 V
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • Ensures reliable contact and long-term electrical performance
  •
  • Optimized for compact wiring arrangements and easy DIN rail mounting
  •
  • Suitable for use in automation, power distribution, and instrumentation

🚀 Applications:


  • Industrial control panels
  •
  • PLC and I/O systems
  •
  • Signal and power distribution blocks

CPSTG1.5/4 delivers a professional-grade solution for clean and consistent terminal wiring.

Wire Size (mm²)0.2 - 1.5mm²
Width3.5mm
ColourGrey
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 14 AWG
Number of Connections5
Number of Levels1
Current Rating13.5A (IEC), 15A (UL)
Voltage Rating250V (IEC), 150V (UL)
Special FeaturesSensor & Actuator with Ground
Type File Name
Data Sheet CPSTG1.5_4.pdf
