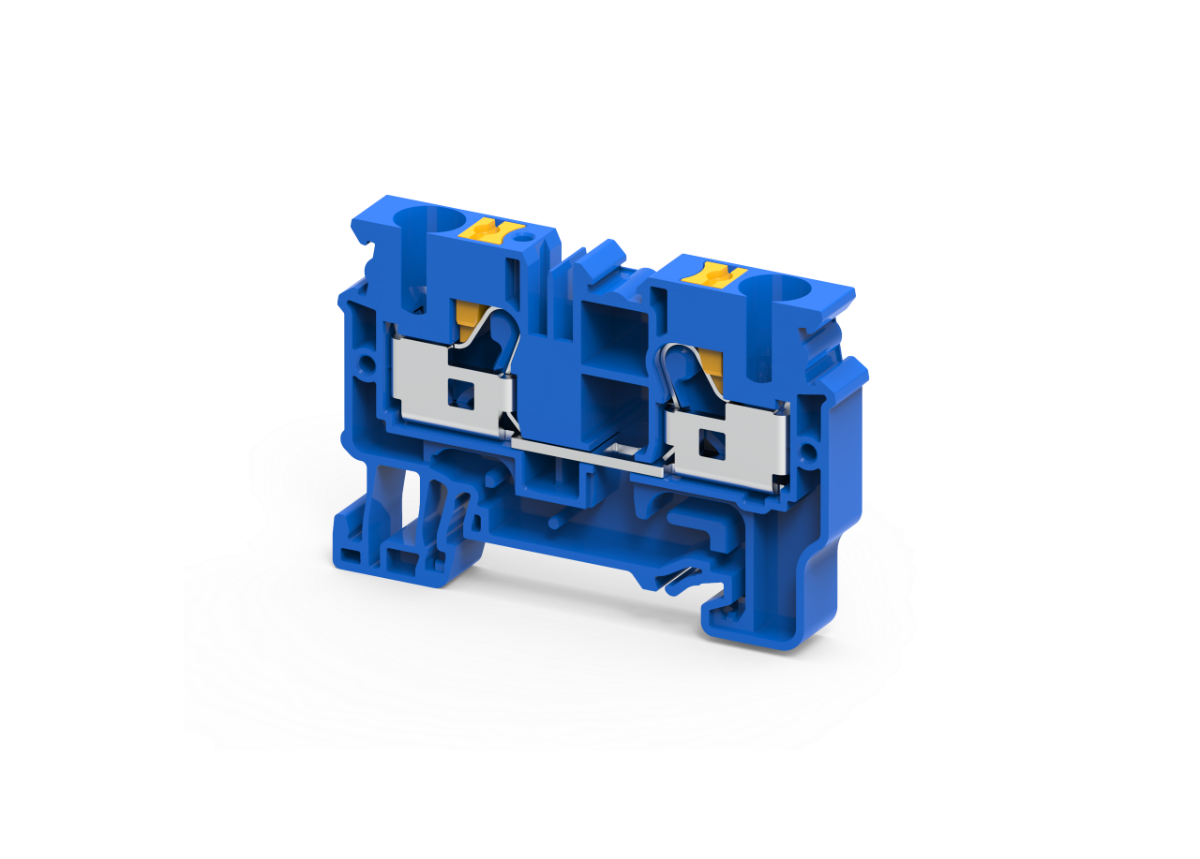

10 mm² FEED THROUGH PUSH IN Terminal Block BLUE

Stock Code: CP6/10BU

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

The Connectwell CP6/10BU is a Feed-through terminal, 6 mm², blue engineered for clean, modular, and space-efficient wiring in industrial panels.

🔧 Technical Highlights:


  • Connections: 2 connections
  •
  • Clamp Type: Push-In Clamp
  •
  • Mounting: 35mm DIN Rail
  •
  • Material: Polyamide 6.6
  •
  • Colour: Blue
  •
  • Operating Temperature: -40°C to +105°C

✅ Benefits:


  • Organised signal, power, or grounding layout
  •
  • Tool-free or screw-secured connections depending on type
  •
  • DIN-rail mountable for fast panel integration

🚀 Applications:


  • Control panel wiring
  •
  • Signal distribution or grounding
  •
  • Automation or diagnostics systems

CP6/10BU supports reliable, professional-grade connections for control, signal, and ground systems.

Wire Size (mm²)0.2 - 10mm²
Width8mm
ColourBlue
Terminal TypePush-In Terminals
FunctionFeed Through
Wire Size (AWG)24 - 6 AWG
Number of Connections2
Number of Levels1
Current Rating57A (IEC), 44A (UL)
Voltage Rating1000V (IEC), 600V (UL)
Type File Name
Data Sheet CP6_10.pdf
