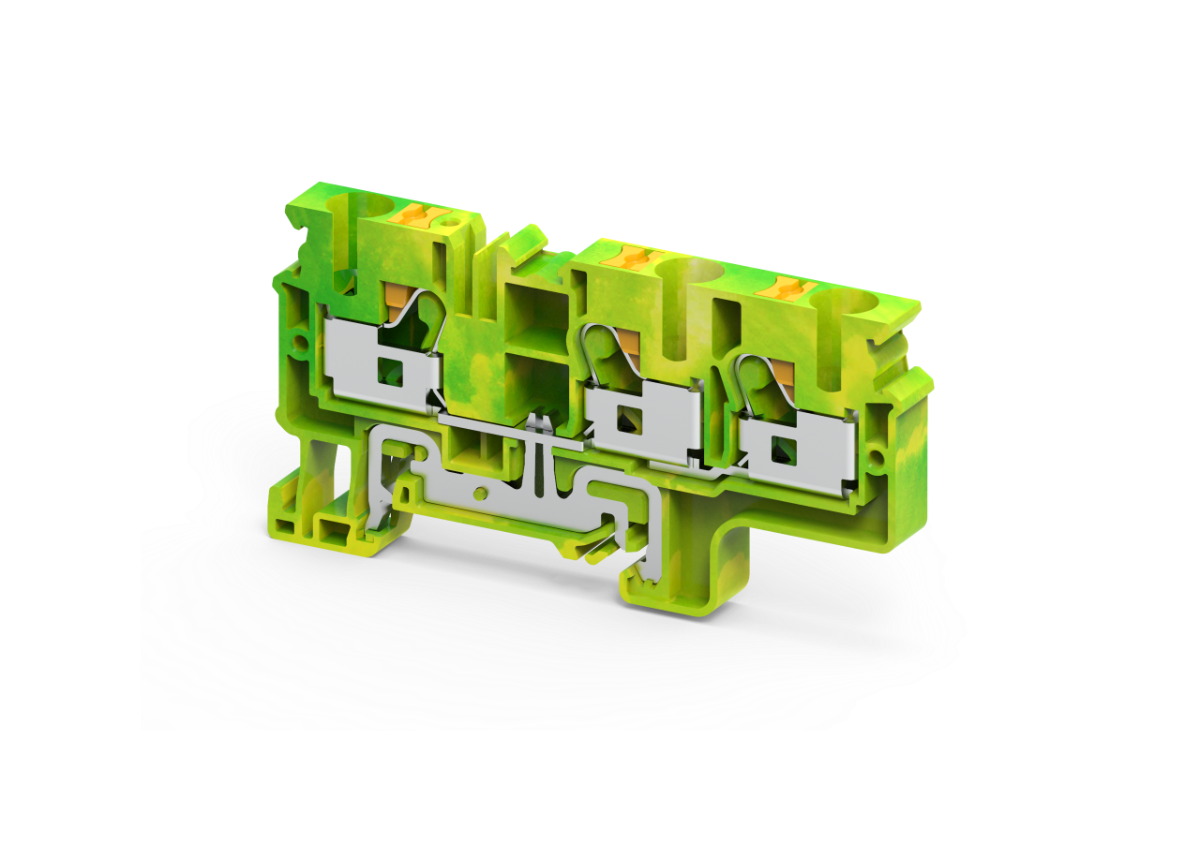

The Connectwell CPG6/10/3 is a 3-Connection Ground Terminal Block for 6 mm² conductors designed to ensure secure earthing in power and control applications. It features a grey housing with Green-Yellow ground identification.
🔧 Technical Highlights:
- Connections: 3 total (single level)
- Clamp: Push-In Clamp
- DIN Rail: 35 mm
- Material: PA6.6
- Colour: Green-Yellow
- Current: 57 A
- Voltage: 1000 V
✅ Benefits:
- Secure earth termination
- DIN rail auto-grounding
🚀 Applications:
- Control cabinet earth bus
- Equipment bonding
CPG6/10/3 supports reliable DIN rail grounding for medium-current systems.
FAQs
- Q: Are these components compatible with standard DIN rail sizes?
A: Yes. They are designed for IEC/EN DIN rail systems commonly used in control panels.
- Q: Do you offer end accessories such as end stops, markers and partition plates?
A: Yes. Matching accessories are available to complete safe and tidy panel installations.
