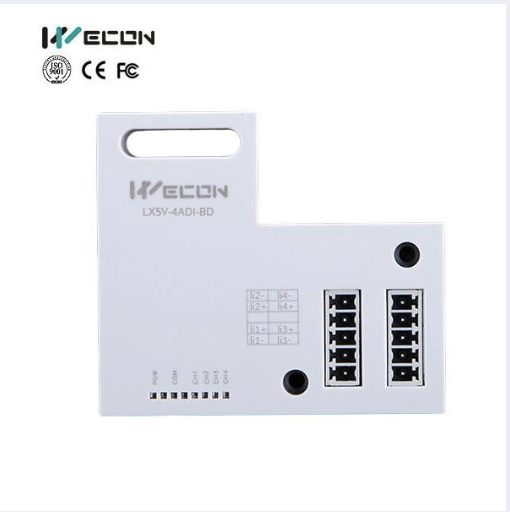

WECON LX5V-4ADI-BD - 4 current type input The WECON LX5V-4ADI-BD is a versatile BD module designed for advanced automation applications. It features:
🔧 Technical Highlights:
- Channels: 4 analog current inputs
- Resolution: 12 bits
- Analog input range: 4mA to 20mA (input resistor 250O)
- Power supply: 5VDC ±10%, 70mA (provided internally by host)
- Dielectric withstand voltage: 500V AC, 1 minute (between all terminals and ground)
- Comprehensive precision: ±0.5% of full scale
- A/D conversion time: One scan cycle
- Supports external load resistance: 250O
- Compatible with LX5V series PLCs
WECON LX5V-4ADI-BD - 4 current type input delivers reliable control with fast setup and flexible I/O for modern panels.
