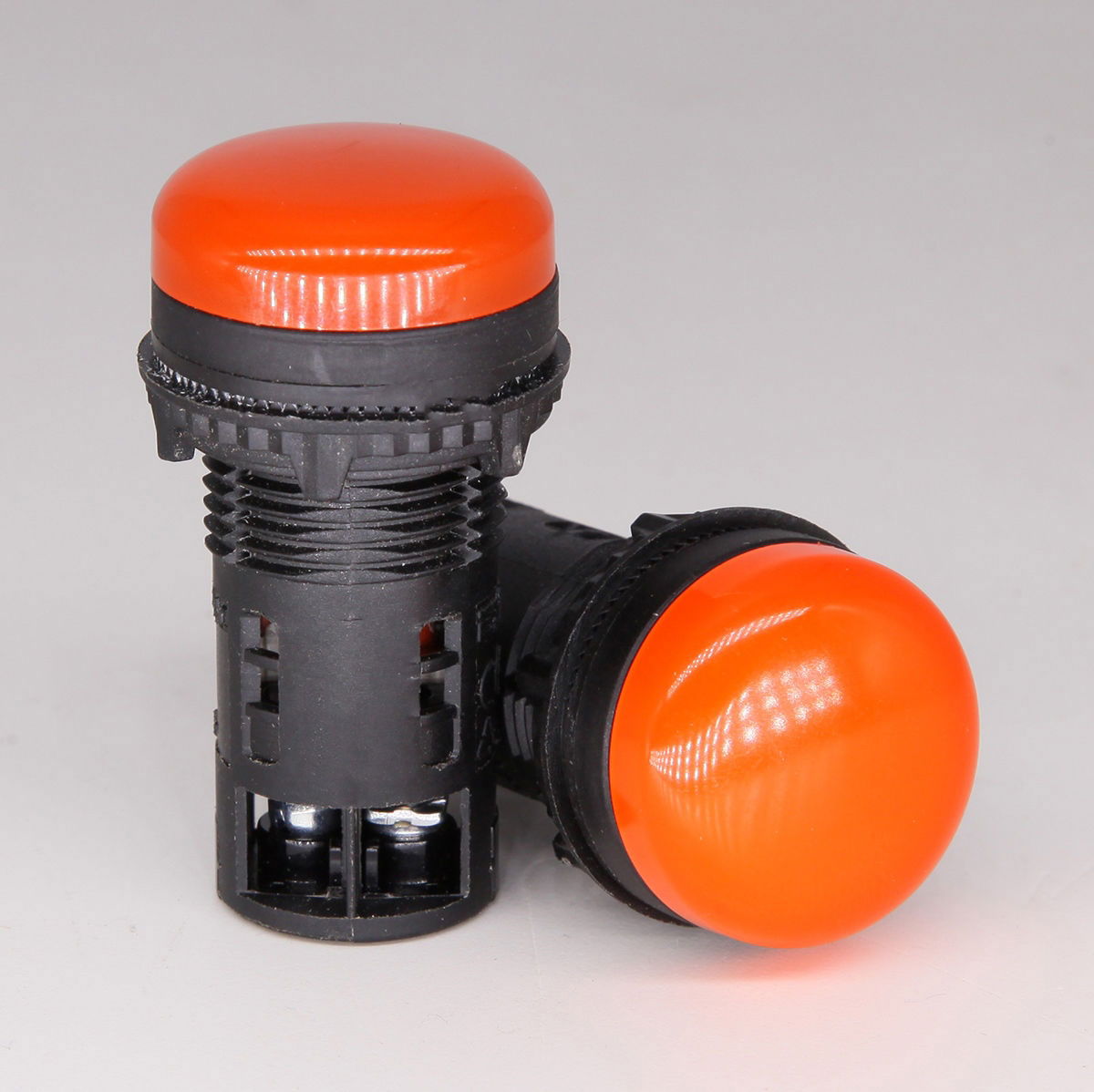

ETLA012C is a Ø22.5 mm panel-mounted amber LED indicator from the ETL range, designed for industrial signaling applications. Operating at 12 V AC/DC, it features a bright amber SMD LED housed in a round body with screw terminal connections and robust ingress protection.
🔧 Technical Highlights:
- LED colour: Amber
- Display: High-brightness SMD LED
- Supply voltage: 12 V AC/DC (±20%)
- Cutout size: Ø22.5 mm
- Mounting: Panel mount with nut fastening
- Ingress protection: IP65 (above panel), IP20 (terminals)
- Operating temperature: -25°C to +65°C
- Certifications: CE, UL
- Third input for lamp test function
✅ Benefits:
- Amber colour ideal for clear status indication
- Low power consumption and long-life LED (0.1 million hours)
- Secure screw terminal connections
- Compact design suitable for dense panel layouts
🚀 Applications:
- Warning and fault indication
- Automation control panels
- Power distribution boards
- OEM manufacturing systems
Why choose this model? ETLA012C delivers reliable amber signaling in a durable and compact form. It's engineered for long-lasting performance in industrial environments where clear status indication matters.
