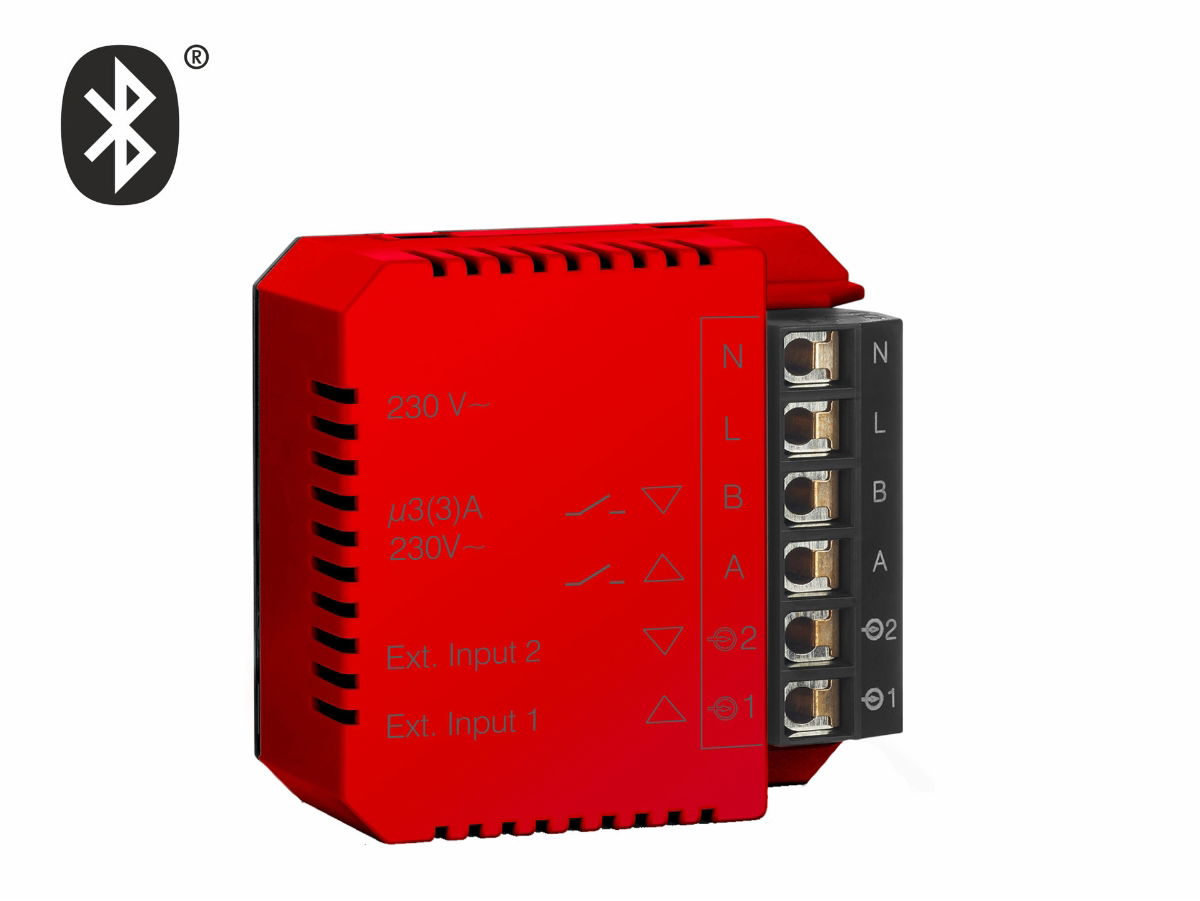

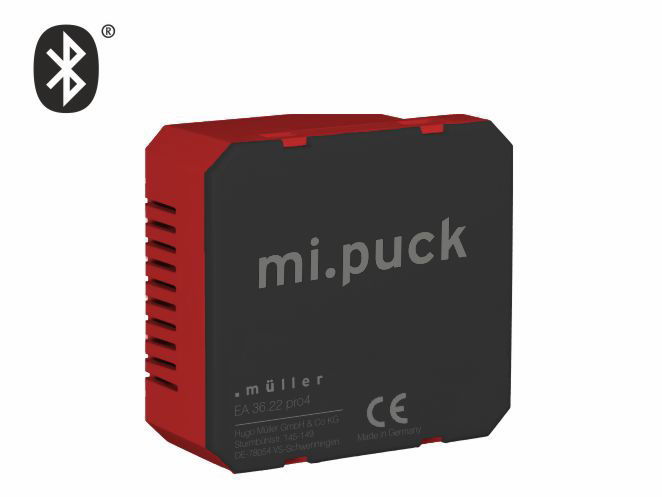

Smart Bluetooth Digital Weekly Timer 230Vac

Stock Code: EA36.22PRO4.230AC

The EA36.22PRO4 is a smart little digital controller which is programmed and controlled via bluetooth. It has 2 inputs for manual control and 2 indipendatly switching channels. The EA36.22PRO4 is powered by 230Vac 50/60Hz

Supply Voltage230Vac
Output Relay / Channels2 x SPCO
Output Relay Rating6A @ 230Vac
FunctionDigital Timeswitch
Timing Range7 Day + Astro
MountingWall Mount
Size44x41.5mm
Terminal TypeScrew Terminals
ProtectionIP20
Special FeaturesBluetooth
Type File Name
Data Sheet db_ea3622pro4 mi.puck_en.pdf
