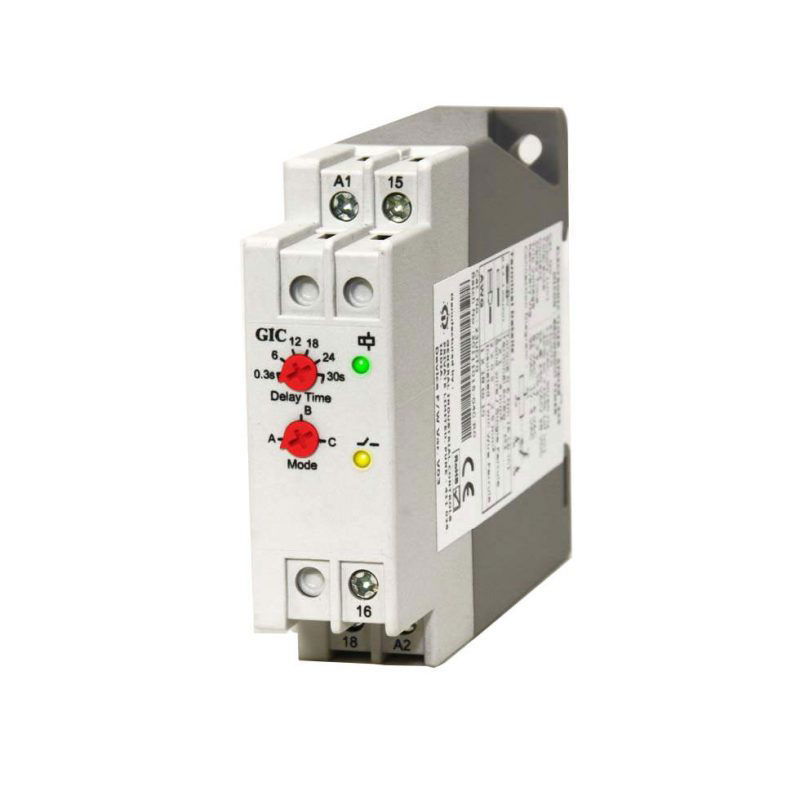

The GIC 27UDT0 is a brownout timer for 240V AC systems with selectable ON Delay, Interval, and Pulse functions. It safeguards equipment by restoring outputs in a controlled manner after voltage recovery.
🔧 Technical Highlights:
- Supply Voltage: 110 VAC or 230 VAC (depending on variant)
- Functions: Detects voltage dips (brownout) and resets control panel; available modes: ON Delay, Interval, Pulse
- Timing Range: 0.3 s to 30 s
- Output Contacts: 1 C/O
- Contact Rating: 5A @ 240 VAC / 28 VDC (resistive)
- Fast response (5 ms)
- Noise immunity to IEC standards
- LED indications
✅ Benefits:
- Versatile modes adapt to various load control needs
- Ensures stable restarts after voltage restoration
- Fits neatly into DIN rail panels
🚀 Applications:
- Industrial automation with power interruption handling
- Sequenced machine resets post-brownout
- Building services with delay-restart logic
The 27UDT0 ensures safe and delayed recovery from brownouts in 240V control systems.
FAQs
- Q: What supply voltages are supported?
A: It operates from 240V AC.
- Q: What timing range does it cover?
A: The timing range is 0.3 s to 30 s.
