Asymmetric timer, 2 C/O, 24-240V AC/DC, ON/OFF delay control, 3s-120s range, DIN rail mount

Stock Code: 2AADT5

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

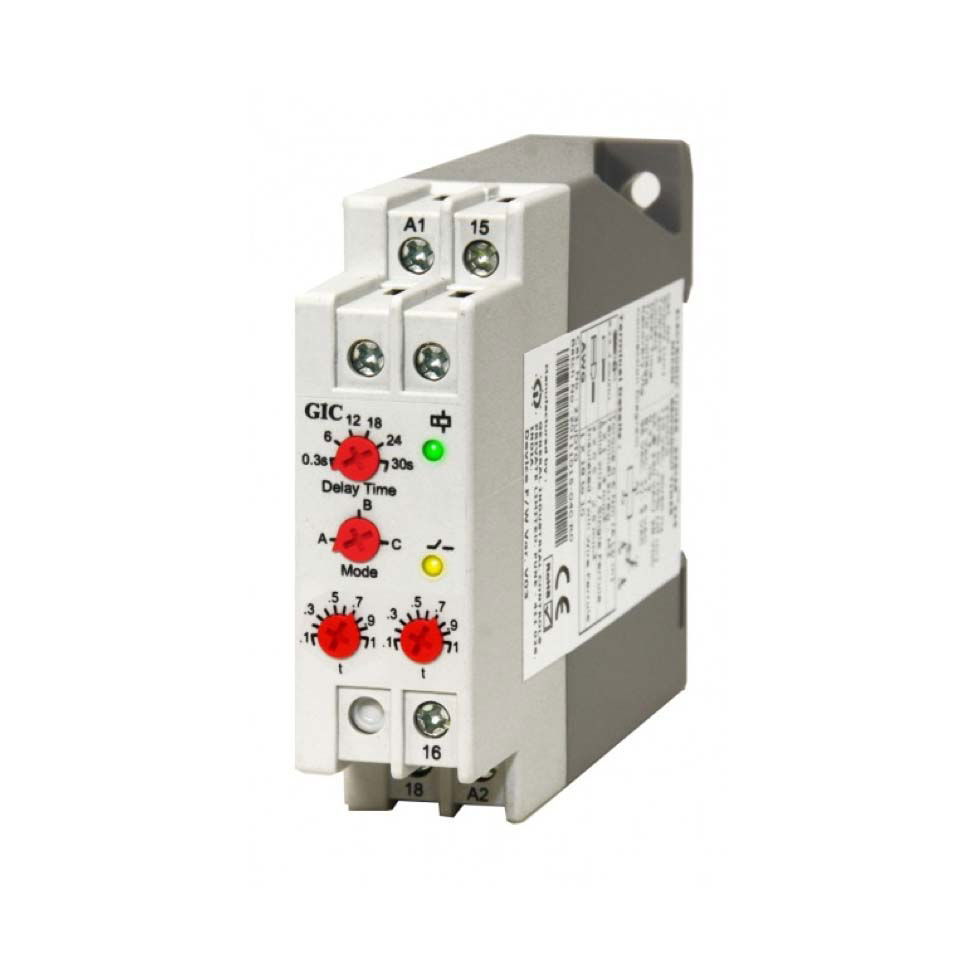

The GIC 2AADT5 is an asymmetric ON/OFF timer with dual C/O relays, offering separate control over ON and OFF cycles for precise interval management. Designed for DIN rail mounting, it supports wide voltage ranges for industrial control systems.

🔧 Technical Highlights:

  • Supply Voltage: 24-240V AC/DC
  • Function: Asymmetric ON-OFF Timer
  • Timing Range: 3 s to 120 s (independent ON and OFF adjustment)
  • Reset Time: Max. 200 ms
  • Output: 2 C/O relay contacts
  • Contact Rating: 5A @ 240 VAC / 28 VDC (resistive)
  • Accuracy: Setting ±5% FS, Repeat ±1%
  • Indicators: Green LED for power ON, Red LED for relay ON
  • Mounting: DIN rail (22.5 mm width)

✅ Benefits:

  • Allows fully independent ON/OFF time settings for flexible process control
  • Dual relay outputs expand application versatility
  • Compact housing fits industrial and OEM panels

🚀 Applications:

  • Cyclic conveyor and packaging systems
  • HVAC fan or lighting duty cycling
  • Motor start-stop automation

The 2AADT5 enhances timing flexibility with independent control of ON and OFF phases, backed by reliable dual outputs.

Supply Voltage24-240Vac/dc
Output Relay / ChannelsDPCO
Output Relay Rating5A @ 230V
Timing Range0.1s - 10 Hrs
MountingDIN Rail
Size22.5mm
ProtectionIP20, IP40
Weight0.16
Type File Name
Data Sheet micon225timers.pdf
Technical Drawings 8 TERMINAL 225 TIMER.stp.zip
