Overview

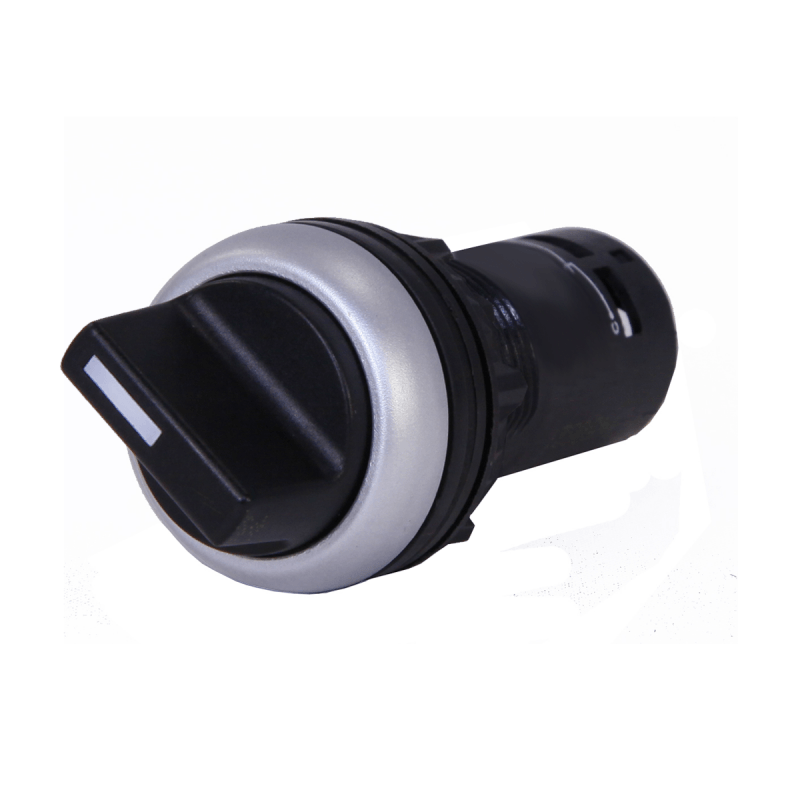

EE04SL6C 22 mm Monoblock Selector Switch - Black, 3 Position, Maintained, 1NO+1NC is a 22 mm monoblock selector switch (3 position, maintained) with integrated 1NO+1NC (Right NO) contacts. The actuator and contacts come in one ready-to-fit body, so there are no separate contact blocks to choose.
Key Features
- Product type: monoblock selector switch, 3 position, maintained
- Colour: black
- Contacts: 1NO+1NC (Right NO)
- Panel cutout: 22.5 mm
- Contact rating: 6 A at 230 V AC (AC-15)
- Ingress protection: IP65 front, IP20 terminals
Typical Applications
- Mode selection (hand / off / auto) on control panels
- Machine control panels and operator stations
- OEM machinery and automation equipment
Technical Specification
| Attribute | Details |
|---|
| Brand | Esbee |
| Stock Code | EE04SL6C |
| Product Type | Monoblock selector switch, 3 position, maintained |
| Colour | Black |
| Contacts | 1NO+1NC (Right NO) |
| Panel cutout | 22.5 mm |
| Contact rating | 6 A at 230 V AC (AC-15) |
| Ingress protection | IP65 front, IP20 terminals |
Downloads and Support
Refer to the product page downloads for the Esbee datasheet and full technical details. Charter Controls can also help confirm whether EE04SL6C is suitable for a specific control panel, machine or replacement application.
FAQs
What contact arrangement does the Esbee EE04SL6C have?
The Esbee EE04SL6C has one normally open and one normally closed contact (1NO+1NC). The normally open contact is on the right.
How does the Esbee EE04SL6C operate?
The Esbee EE04SL6C is a monoblock selector switch, 3 position, maintained.
What panel cutout does the Esbee EE04SL6C need?
The Esbee EE04SL6C fits a standard 22.5 mm panel cutout.
What is the contact rating of the Esbee EE04SL6C?
The Esbee EE04SL6C is rated 6 A at 230 V AC (AC-15), with IP65 protection at the front of the panel and IP20 at the terminals.
