Overview

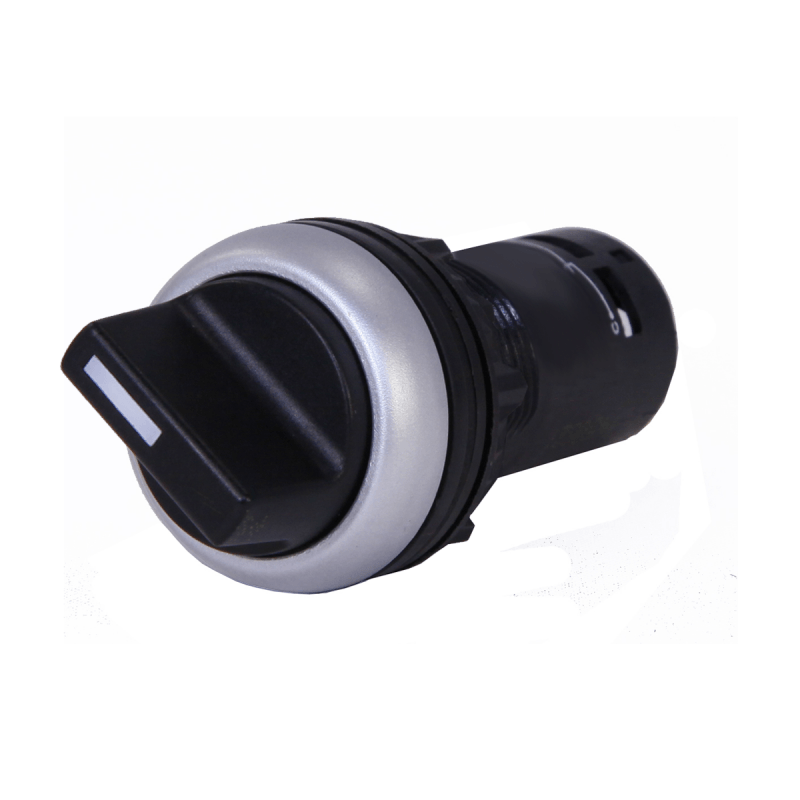

EE04SI5G 22 mm Monoblock Selector Switch - Green, 2 Position, Spring Return, 2NC is a 22 mm monoblock selector switch (2 position, spring return) with integrated 2NC contacts. The actuator and contacts come in one ready-to-fit body, so there are no separate contact blocks to choose.
Key Features
- Product type: monoblock selector switch, 2 position, spring return
- Colour: green
- Contacts: 2NC
- Panel cutout: 22.5 mm
- Contact rating: 6 A at 230 V AC (AC-15)
- Ingress protection: IP65 front, IP20 terminals
Typical Applications
- Mode selection (hand / off / auto) on control panels
- Machine control panels and operator stations
- OEM machinery and automation equipment
Technical Specification
| Attribute | Details |
|---|
| Brand | Esbee |
| Stock Code | EE04SI5G |
| Product Type | Monoblock selector switch, 2 position, spring return |
| Colour | Green |
| Contacts | 2NC |
| Panel cutout | 22.5 mm |
| Contact rating | 6 A at 230 V AC (AC-15) |
| Ingress protection | IP65 front, IP20 terminals |
Downloads and Support
Refer to the product page downloads for the Esbee datasheet and full technical details. Charter Controls can also help confirm whether EE04SI5G is suitable for a specific control panel, machine or replacement application.
FAQs
What contact arrangement does the Esbee EE04SI5G have?
The Esbee EE04SI5G has two normally closed contacts (2NC).
How does the Esbee EE04SI5G operate?
The Esbee EE04SI5G is a monoblock selector switch, 2 position, spring return.
What panel cutout does the Esbee EE04SI5G need?
The Esbee EE04SI5G fits a standard 22.5 mm panel cutout.
What is the contact rating of the Esbee EE04SI5G?
The Esbee EE04SI5G is rated 6 A at 230 V AC (AC-15), with IP65 protection at the front of the panel and IP20 at the terminals.
