Overview

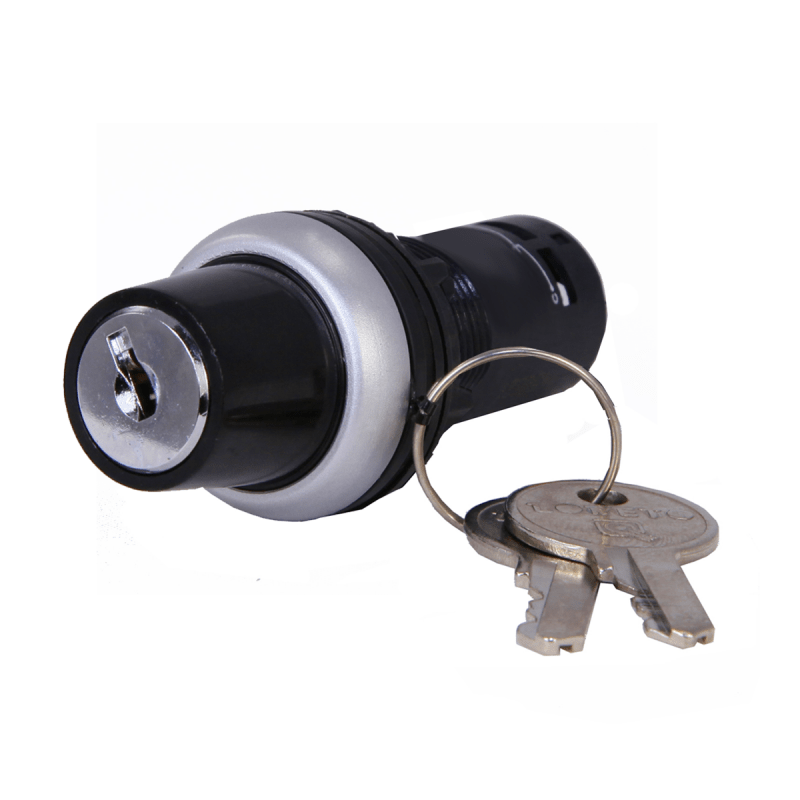

EE05KM5C2 22 mm Monoblock Key Switch - 3 Position, Spring Return from Left, 2NC is a 22 mm monoblock key switch (3 position, spring return from left) with integrated 2NC contacts. The actuator and contacts come in one ready-to-fit body, so there are no separate contact blocks to choose.
Key Features
- Product type: monoblock key switch, 3 position, spring return from left
- Colour: black
- Contacts: 2NC
- Panel cutout: 22.5 mm
- Contact rating: 6 A at 230 V AC (AC-15)
- Ingress protection: IP65 front, IP20 terminals
Typical Applications
- Mode selection (hand / off / auto) on control panels
- Machine control panels and operator stations
- OEM machinery and automation equipment
- Restricting access to settings or modes
Technical Specification
| Attribute | Details |
|---|
| Brand | Esbee |
| Stock Code | EE05KM5C2 |
| Product Type | Monoblock key switch, 3 position, spring return from left |
| Colour | Black |
| Contacts | 2NC |
| Panel cutout | 22.5 mm |
| Contact rating | 6 A at 230 V AC (AC-15) |
| Ingress protection | IP65 front, IP20 terminals |
Downloads and Support
Refer to the product page downloads for the Esbee datasheet and full technical details. Charter Controls can also help confirm whether EE05KM5C2 is suitable for a specific control panel, machine or replacement application.
FAQs
What contact arrangement does the Esbee EE05KM5C2 have?
The Esbee EE05KM5C2 has two normally closed contacts (2NC).
How does the Esbee EE05KM5C2 operate?
The Esbee EE05KM5C2 is a monoblock key switch, 3 position, spring return from left.
What panel cutout does the Esbee EE05KM5C2 need?
The Esbee EE05KM5C2 fits a standard 22.5 mm panel cutout.
What is the contact rating of the Esbee EE05KM5C2?
The Esbee EE05KM5C2 is rated 6 A at 230 V AC (AC-15), with IP65 protection at the front of the panel and IP20 at the terminals.
