Compact Key Selector Switch 22mm 2 Position 2Nc  0 To 45 Degee Swing

Stock Code: EE04KK5C1

Minimum Quantity:

ex VAT (%) VAT n/a
From ex VAT (%) VAT n/a Call Free
Discount:
Price ex VAT (%):
VAT n/a:
Due In Due In
Notify when back in stock

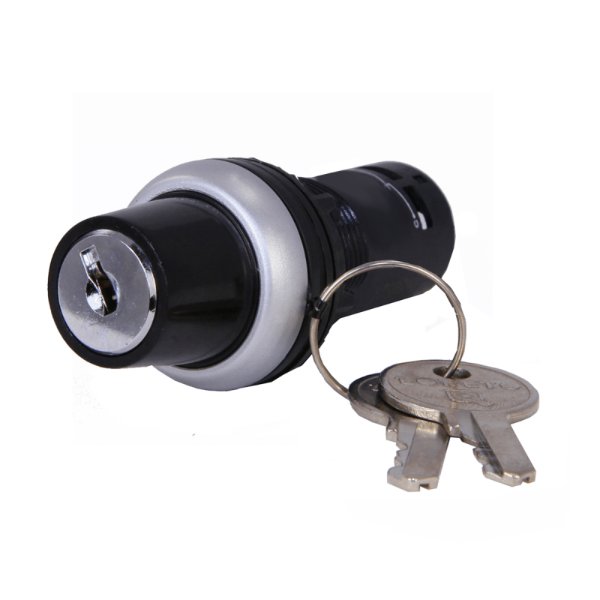

EE04KK5C1 is a 22.5 mm monoblock key-operated selector switch from Esbee’s Gen Next EE series. It features a black key actuator with a silver plastic collar and integrated contact block. The switch has a 2-position maintained mechanism with 0°–45° rotation, offering secure operator access and compact control panel design.

🔧 Technical Highlights:

  • Cutout size: Ø22.5 mm
  • Switch type: 2-position maintained
  • Rotation: 0°–45° rotation
  • Actuator: Key-operated, colour: Black
  • Collar type: Silver plastic
  • Contact configuration: Unknown (monoblock)
  • Ingress protection: IP65
  • Operating temperature: –25°C to +65°C
  • Compliance: CE, UL, RoHS

✅ Benefits:

  • Integrated design saves panel space
  • Secure access with key operation
  • Quick installation with built-in contacts

🚀 Applications:

  • Mode selection on machinery
  • Operator lockout controls
  • Compact panel interfaces

Why choose this model? EE04KK5C1 offers robust, secure control with key-based actuation and monoblock convenience, ideal for industrial access control.

Output Relay / Channels2 X SPNC
Output Relay Rating6A @ 230V
MountingPanel Mount
Size22.5mm
Positions2 Without Return
Angle Of Throw0 to 45
StyleKey
ProtectionIP20, IP65
Type File Name
Data Sheet GenNextEntegralPushButtons.pdf
