Under and Over Voltage, 24Vac, DPCO

Stock Code: TCV-W.24AC

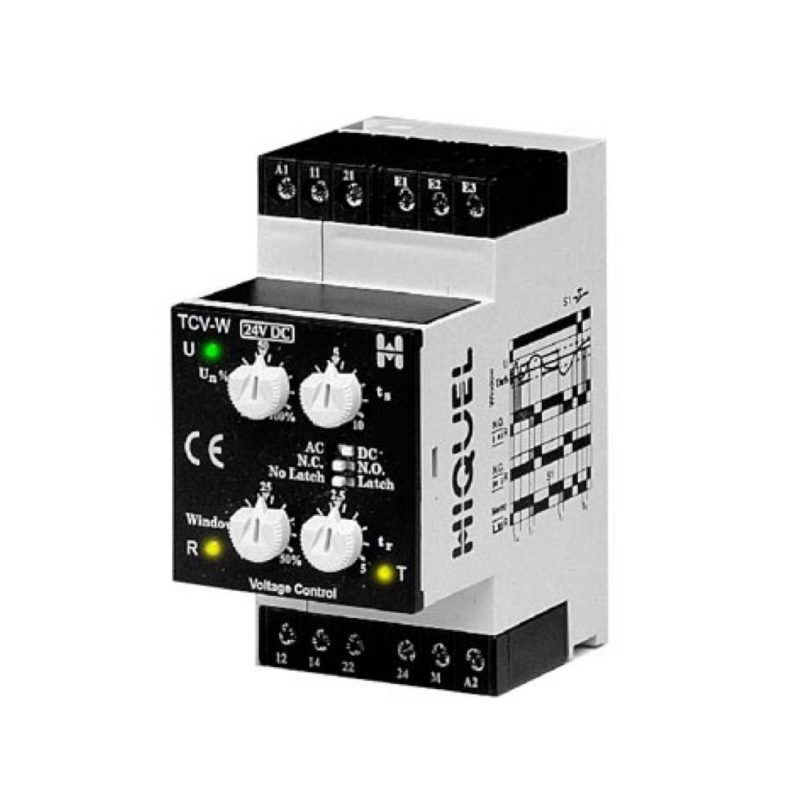

The TCV-W 24Vac is a DIN Rail mounted DPCO Single Phase Voltage Monitoring Relay from HIQUEL. It can be powered with the following voltages: 24Vac

Supply Voltage24Vac
Output Relay / ChannelsDPCO
Output Relay Rating6A @ 230V
FunctionUnder and Over Voltage
Monitoring Range0.5 - 600V
MountingDIN Rail
Size45mm
Terminal TypeScrew Terminals
ProtectionIP20
Weight0.18
Type File Name
Data Sheet tcvw.pdf
