Hi — Charter Controls, your go-to supplier for everything that goes in or on a control panel, is excited to introduce our latest range of HMIs from WECON.
WECON Technology is a leading global manufacturer, specialising in the development and production of Programmable Logic Controllers, HMIs, and IIoT gateway devices — like the V-Box.
The HMIs from WECON are known for their economical and practical design, fast response speed, and highly configurable options.
Introducing the WECON PI8000IG Series — high-performance, IIoT-ready Human Machine Interfaces.
The PI8000IG Series delivers outstanding performance with a high-speed quad-core CPU, 4GB of eMMC storage, and 512MB of RAM — giving you significantly increased data processing power.
Real-time IIoT capabilities include 300 real-time data tags, 200 alarm tags, and 100 historical data tags.
Storage capacity? 120 days of logging and up to 1 million data tags stored locally.
Multimedia support includes Ethernet camera connectivity — allowing live video feed and camera control directly from the HMI screen, including rotation functions.
With multi-link interconnection, you can connect master HMIs to PLCs and other dependent HMIs — ideal for long production lines or large, multi-station systems.
And you do not even need to be physically present — monitor your production remotely on the local network using WECON’s free monitoring software.
Flexible connectivity includes USB Host and USB Client ports…
RS232, RS422, and RS485 serial ports…
An Ethernet port interface, with optional dual network ports…
And an optional SD card slot for further expansion.
The PI8000IG Series is designed with a rich interface and multiple communication ports — making it easy to connect peripherals and suitable for a wide range of industrial applications.

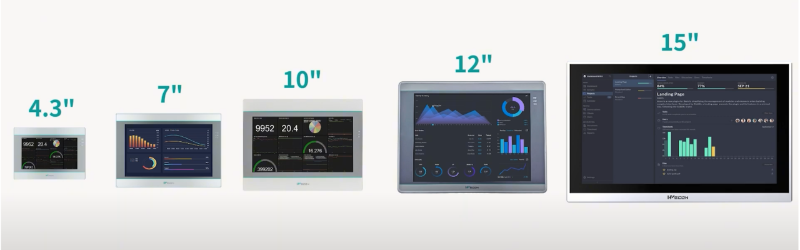

Available in 4.3-inch, 7-inch, 10-inch, 12-inch, and 15-inch models, there is a size for every application.
The 4.3-inch model is compact and energy-efficient — ideal for space-limited environments without compromising IIoT functionality.
The 15-inch model features an ultra-thin aluminium body and offers intuitive, large-scale monitoring and control with a crystal-clear interface — helping your operators manage processes with ease.
Additional features of the PI8000IG Series include:
Alarm push notifications,
Multi-link interconnection,
Keyboard integration,
PDF reading,
Free tag protocol,
Support for MQTT, Modbus, OPC UA, HTTP,
Lua scripting,
LAN monitoring,
Remote access,
And eight-language support.
All from WECON — making better automation to build your success.
Order yours today from Charter Controls.
Scan the QR code, visit www.charter-controls.com, Or call us on 01424 850 660.
Thanks — and have a great day!
[End Transcript]
Charter Controls is the UK import agent for WECON. UK stock, technical guidance, and next-day delivery available.
